202 N9030B PXA Signal Analyzer Service Guide
Front End Control Troubleshooting
A15 Front End Control Description

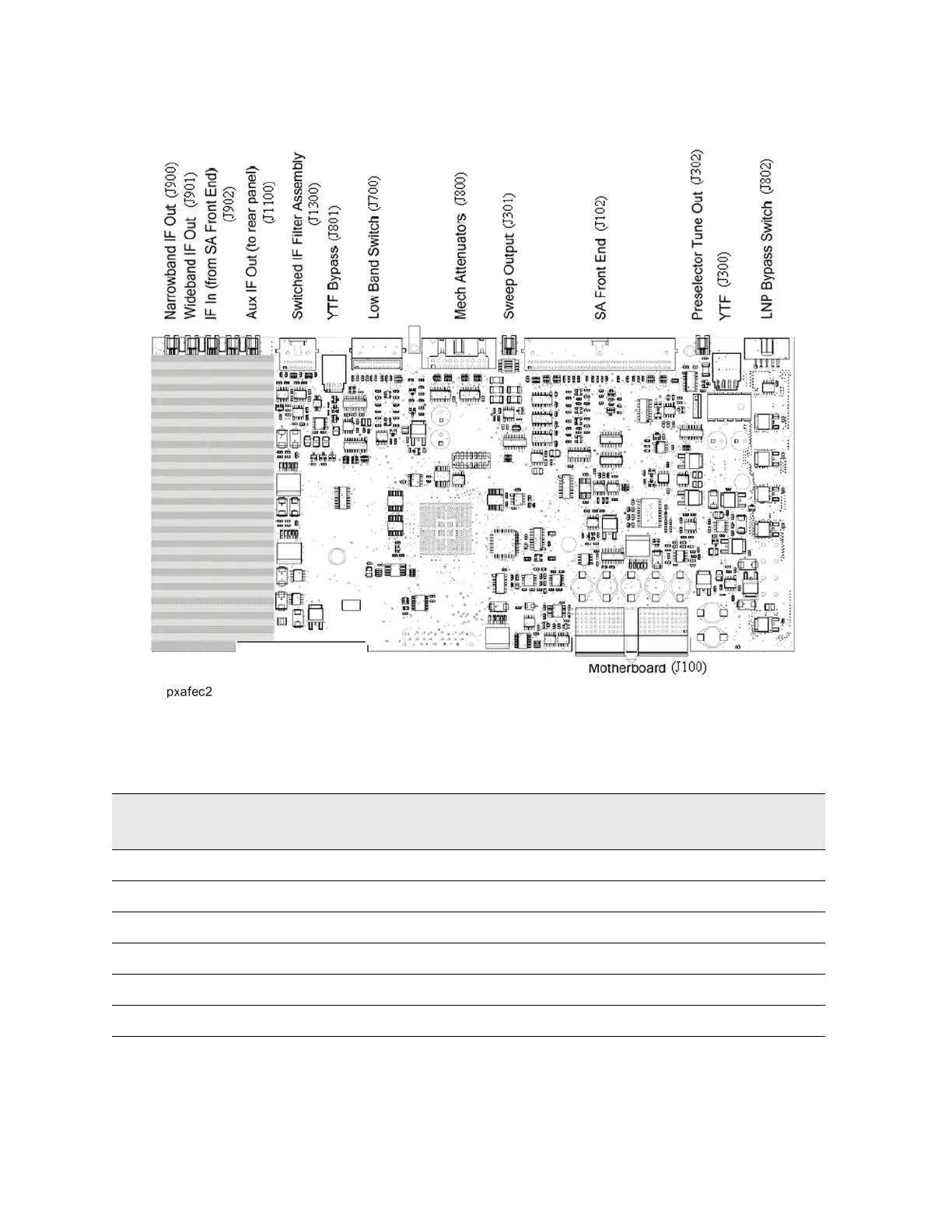

Figure 6-1 A15 Front View, Physical Connectors
The table below describes the connector location and the final destinations of
the RF signal, switch control logic or bias voltage.
Table 6-2 A15 Connectors and Destinations
A15 Connector
Designation
Description Destination
J900 Narrowband I.F. Out To A2
J901 Wideband I.F. Out To A2 or A3 (Wide bandwidths)
J902 322.5 MHz I.F. In From A13 to A15
J903 Ext IF In From A13 to A15 (Option EXM)
J1100 Aux I.F. Out To Rear Panel
J1300 Switched I.F. Filter Out To A13A2
