474 N9030B PXA Signal Analyzer Service Guide
Assembly Replacement Procedures
RF Area (Options 544, 550)

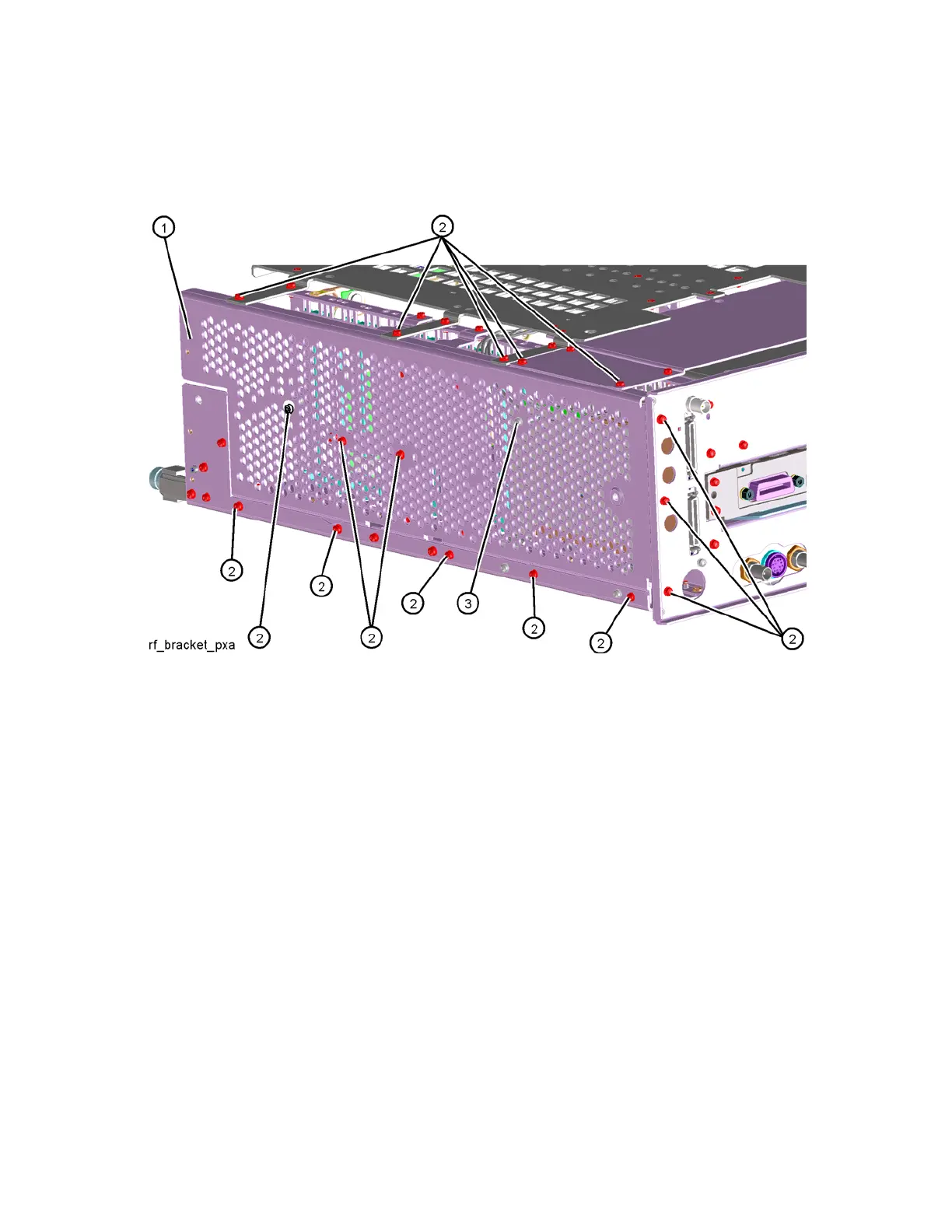

3. Refer to Figure 16-43. Remove the RF bracket (1) by removing the sixteen
screws (2) (0515-0372) using the T-10 driver.
Figure 16-43 RF Bracket Removal
To Next Page
