516
N903
0B P
XA Signal Analyz
er Service Guide
Assembly Replacement Procedur
es
Disk Drive
3.

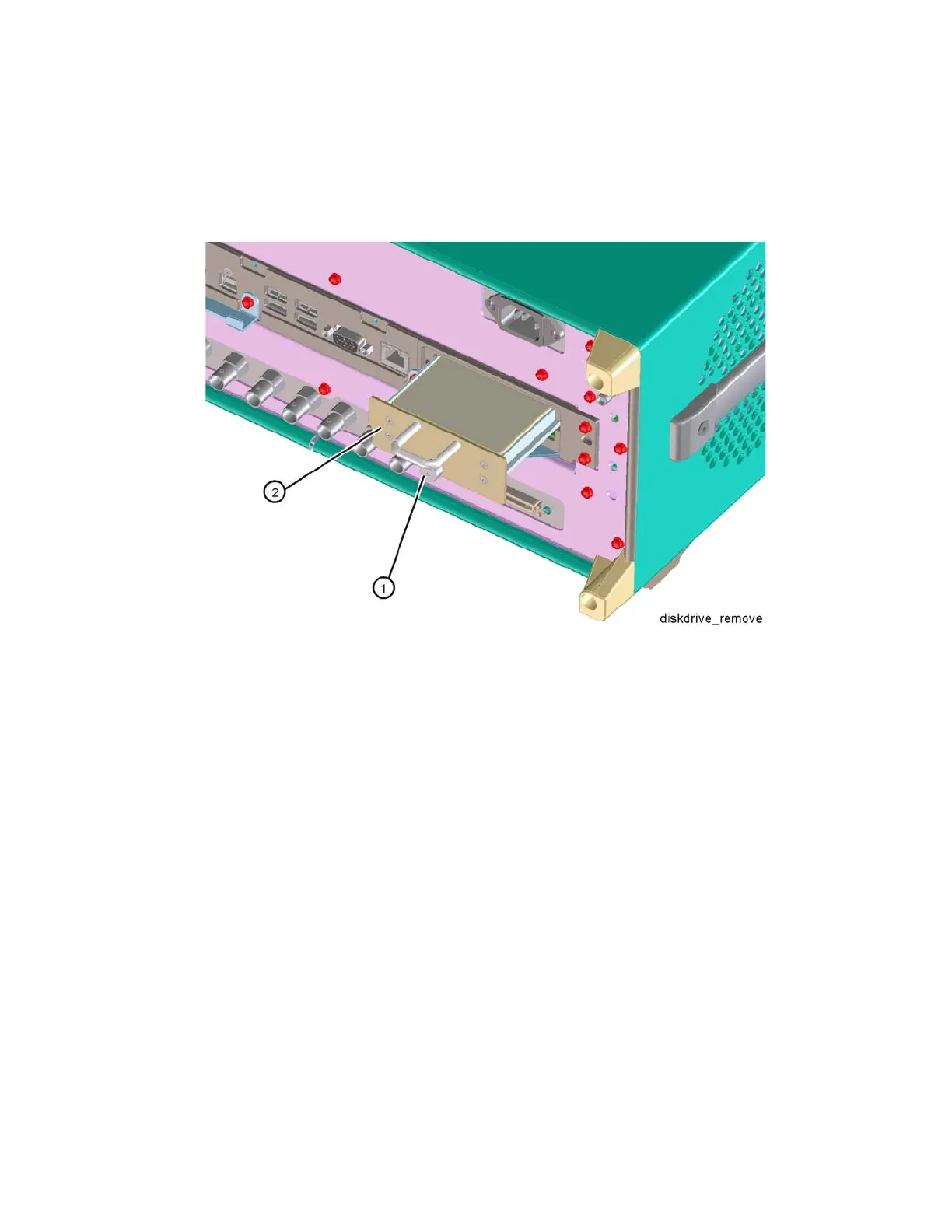

Refer to
Figur
e 16-80
. Loca
te and r
emove the existing d
isk drive carrier
assembly
(2)
fr
om the in
strument by loosening the r
ear panel scr
ew
(1)
.
Figure 16-80
Removing the Disk Dr
ive Carrier Assem
bly
