530
N903
0B P
XA Signal Analyz
er Service Guide
Assembly Replacement Procedur
es
Motherboar
d Assembly
16.
Refer to
Figur
e 16-92
. Remove the left side chas
sis
(1)
(same side as
the
fan) by r
emoving the nine scr
ews
(2)
(
0515-03
72
) (six on the bottom).

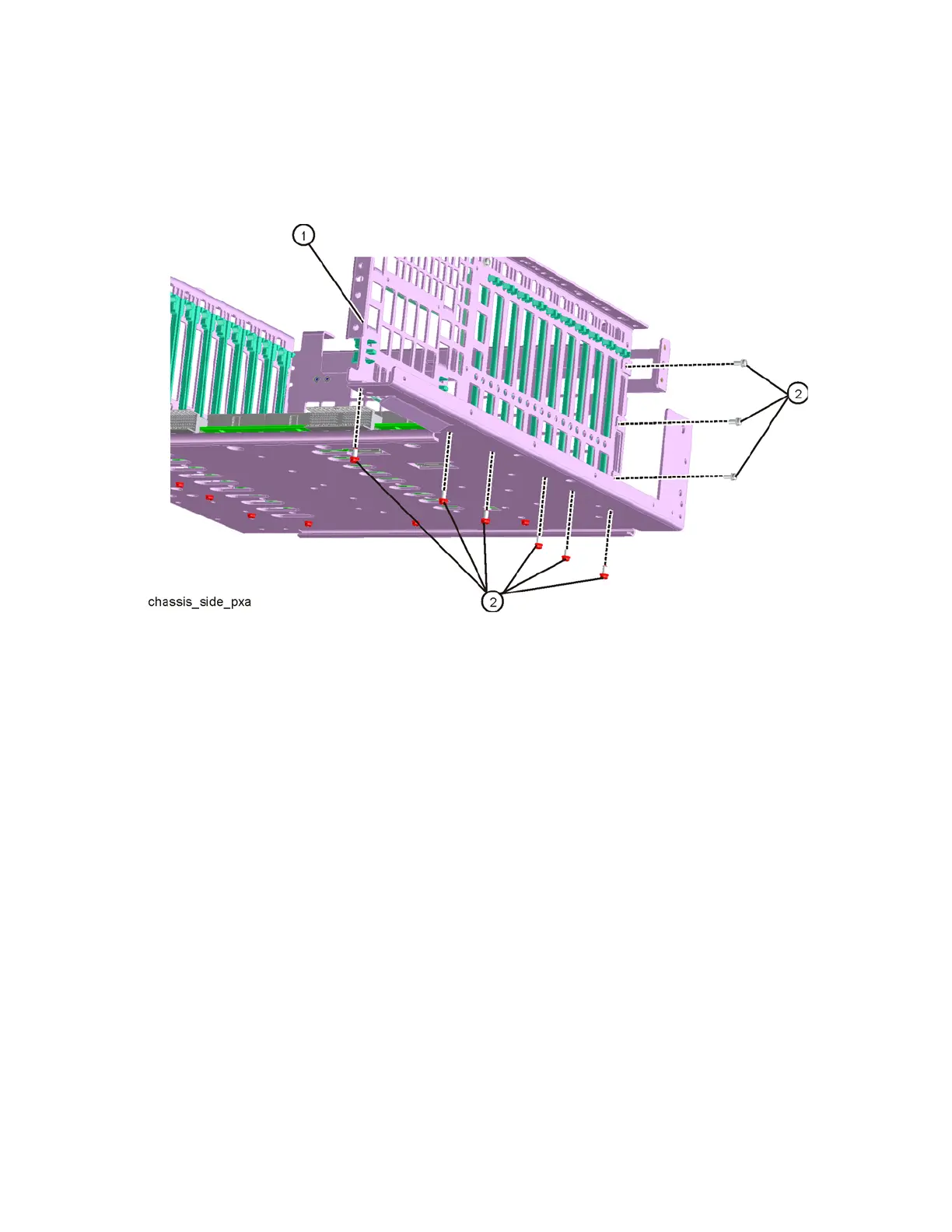

Figure 16-92
Chassis Side Removal
529
