Lexmark MS410 series

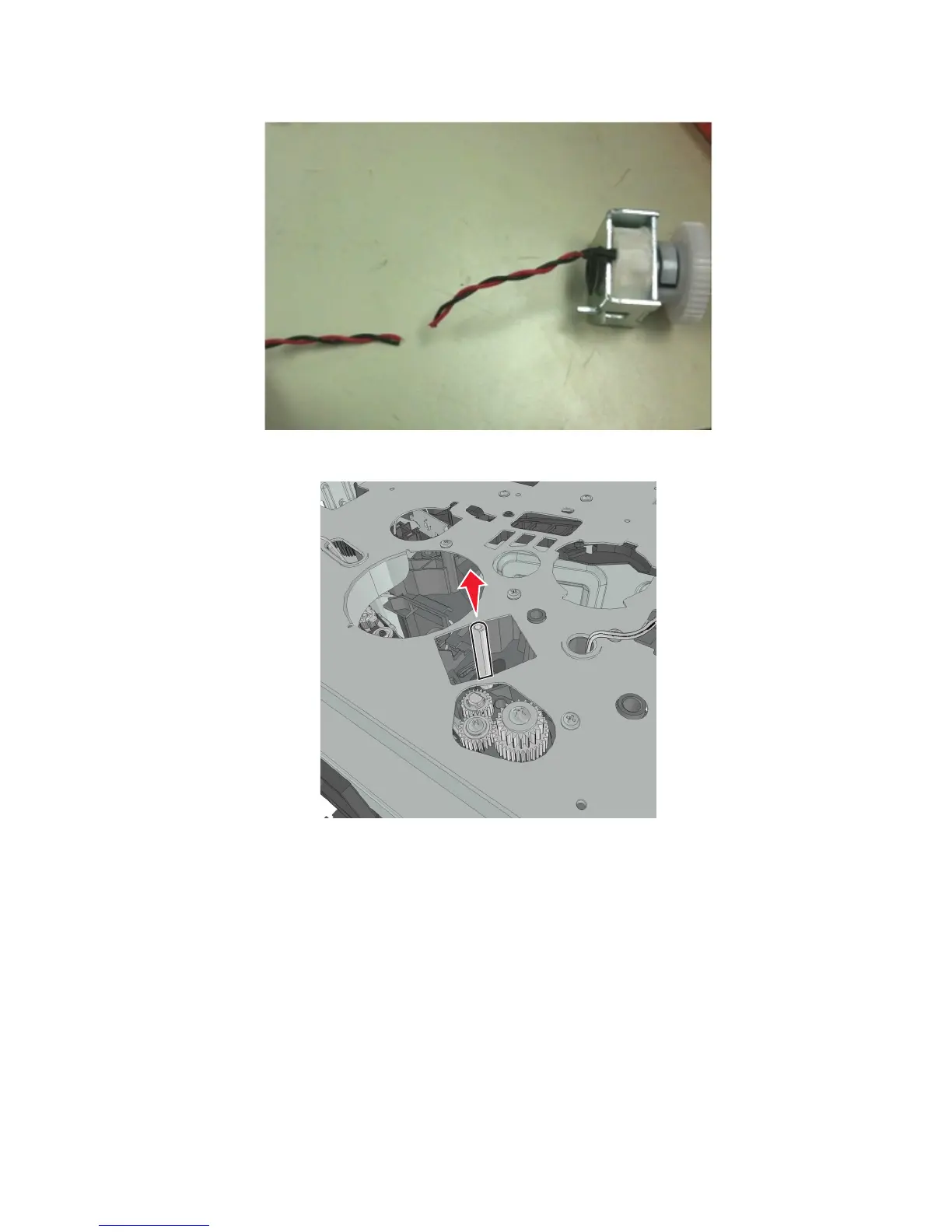

b On the replacement clutch, measure 4 inches from the clutch, and then cut the cable.
c Pull out the shaft.
d Install the replacement clutch on the shaft.
e Insert the red wire from the printer into the insulated displacement connector (IDC).
Note: Make sure that the wire is positioned under the contact element.
4514-420, -430
Repair information
157
