Malvern Mastersizer 3000 User Manual

Chapter 7 Reporting
Page 7-4 MAN 0474
Scrolling layout
Reports are presented in sections that are stacked vertically. To reveal all of the
information on the report requires the use of the scroll bar, or collapse individual
sections as required.
Zooming in and out of reports
To zoom in and out use the Zoom slider on the bottom right of
the report pane. In Paging Layout view, the number of pages in the report is
adjusted accordingly.
Selecting reports to display in a workspace
The set of reports that are displayed are associated and saved with the workspace
that is currently selected. See Workspace in the Software overview chapter for
more information. This section gives information on how to choose the set of
reports that are shown in the current workspace and how to arrange the order of
the report tabs shown.
1. From the Workspace pane, select the workspace for which you wish to select
reports.

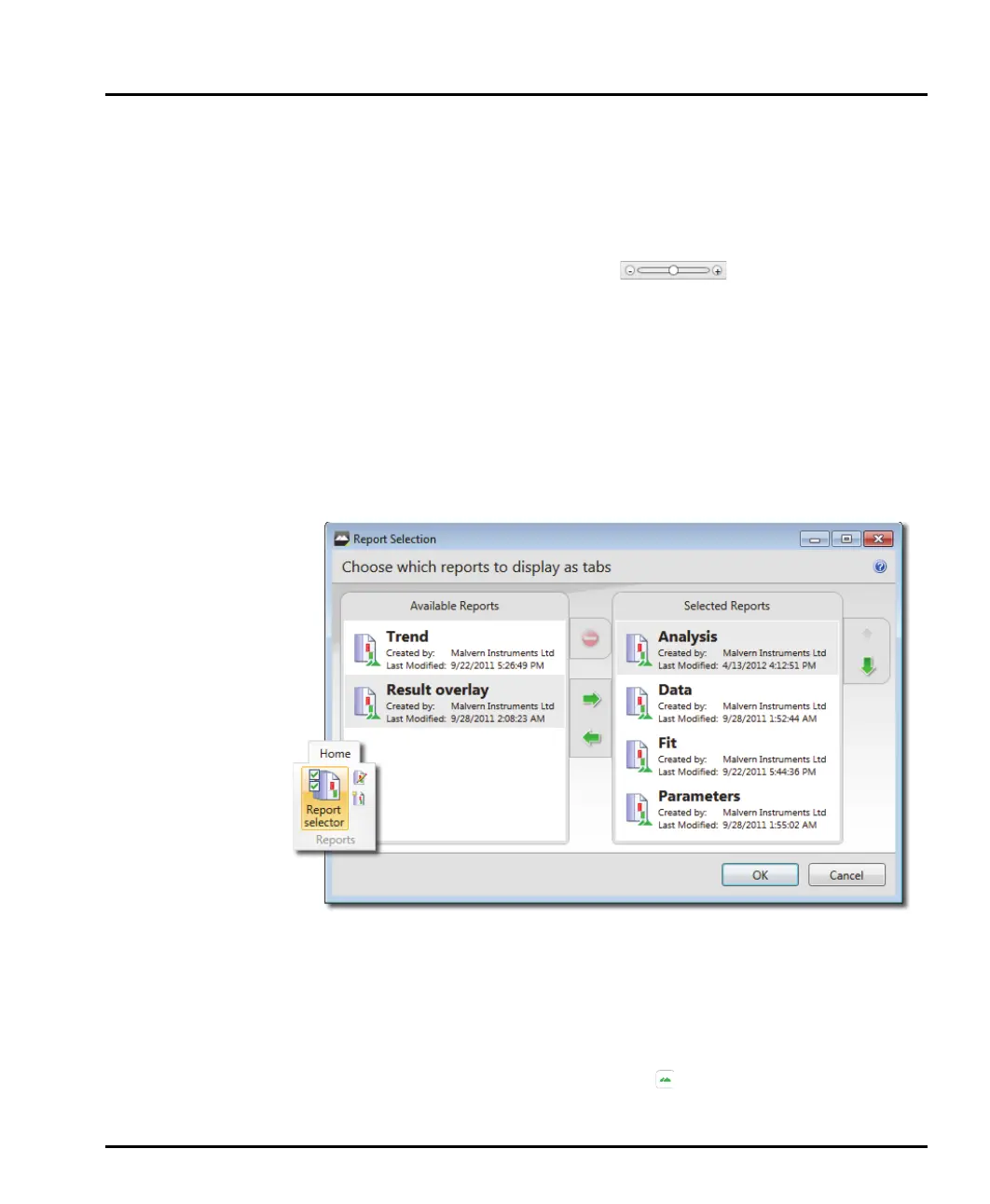

2. From the Reports section of the Home ribbon, choose Report Selector to
display the Report Selection window.
3. This window contains a list of Available Reports on the left and Selected
Reports on the right. Reports shown with
are reports that were created by
Malvern Instruments.

Malvern Mastersizer 3000 Specifications

General

Measurement principle	Laser diffraction
Blue laser wavelength	470 nm
Sample dispersion options	Wet and dry dispersion
Data acquisition rate	10 kHz
Particle size range	0.01 to 3500 microns
Laser type	He-Ne and solid state
Accuracy	Better than 1%
Repeatability	Better than 0.5%
Technology	Mie and Fraunhofer theories
Sample dispersion units	Hydro MV, Hydro LV, Aero S
Optical model	Mie theory
Power requirements	100-240 V, 50/60 Hz
Detector arrangement	Log-spaced array
