Software overview Chapter 3
Mastersizer 3000 Page 3-7
Selected Records Information
At the bottom of the Records view a summary is provided that details the number
of records currently selected within each measurement file.
Copying records
Records can be copied in a couple of ways:
 Duplicating records: 
To duplicate records to a new measurement file or within the same measure-
ment file. From the Clipboard group on the Home ribbon, select Copy - this
will copy the records to the clipboard. The content can then be pasted back into
the Mastersizer application software.
 Copying records into Excel:
To quickly copy records into Excel or similar applications the selected records
must be dragged from the Mastersizer application software, and dropped
into the chosen application. Alternatively the data export options can be used
(refer to the Advanced features chapter).

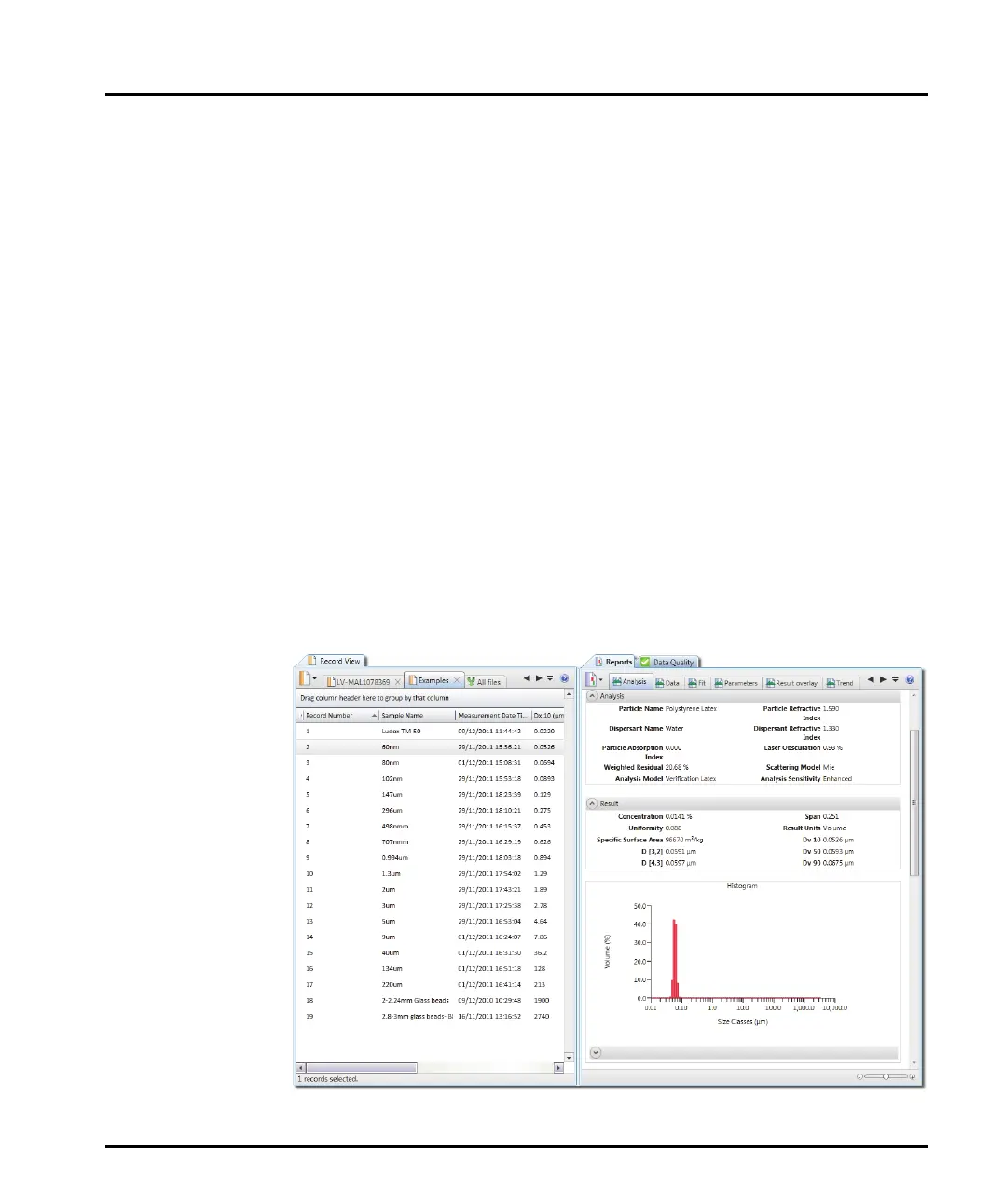

Reports tab
Reports are displayed automatically whenever you select a record, or number of
records, from the Record view (assuming that the selected view is showing the
Reports tab).

Malvern Mastersizer 3000 Specifications

General

Measurement principle	Laser diffraction
Blue laser wavelength	470 nm
Sample dispersion options	Wet and dry dispersion
Data acquisition rate	10 kHz
Particle size range	0.01 to 3500 microns
Laser type	He-Ne and solid state
Accuracy	Better than 1%
Repeatability	Better than 0.5%
Technology	Mie and Fraunhofer theories
Sample dispersion units	Hydro MV, Hydro LV, Aero S
Optical model	Mie theory
Power requirements	100-240 V, 50/60 Hz
Detector arrangement	Log-spaced array
