Malvern Mastersizer 3000 User Manual

System security Chapter 8
Mastersizer 3000 Page 8-9

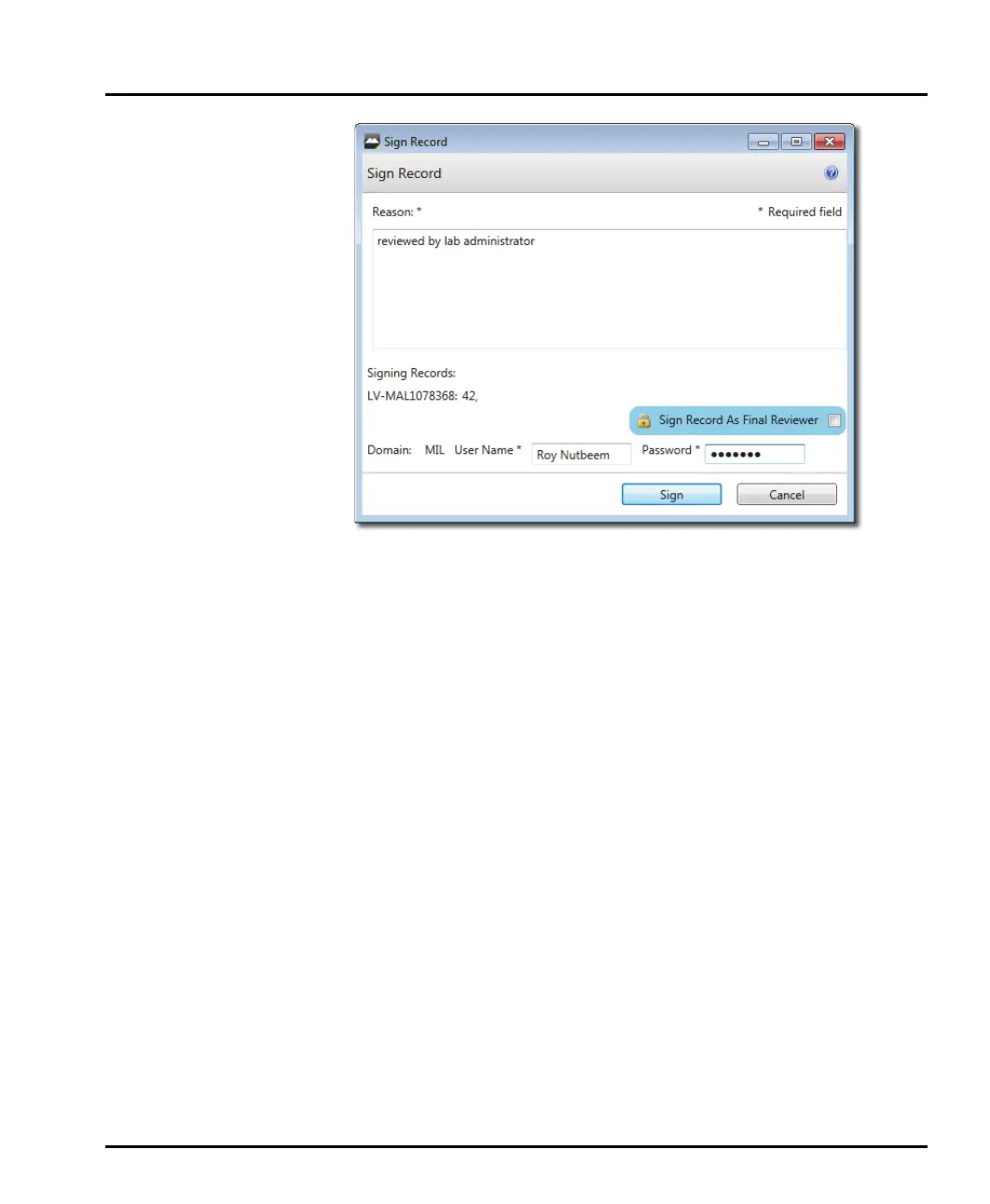

Enter a Reason for the change and signature, then enter your User name and
Password. The Final reviewer check box can also be selected, this will mean that
no further changes or updates will be allowed on that record.
For more information consult the MAC documentation

Malvern Mastersizer 3000 Specifications

General

Measurement principle	Laser diffraction
Blue laser wavelength	470 nm
Sample dispersion options	Wet and dry dispersion
Data acquisition rate	10 kHz
Particle size range	0.01 to 3500 microns
Laser type	He-Ne and solid state
Accuracy	Better than 1%
Repeatability	Better than 0.5%
Technology	Mie and Fraunhofer theories
Sample dispersion units	Hydro MV, Hydro LV, Aero S
Optical model	Mie theory
Power requirements	100-240 V, 50/60 Hz
Detector arrangement	Log-spaced array
