Malvern Mastersizer 3000 User Manual

Making measurements Chapter 4
Mastersizer 3000 Page 4-17
Note
This section now provides information on how to enter only some of the
key measurement settings - for complete details on all settings, see Meas-
urement settings reference later in this chapter.
2. Choose the Sample-Identification settings to record both the Sample
Name details and define any further information fields (for example, Notes)
that will help users to repeat the measurement at a later date.
3. Use the Sample-Material section to define the optical properties (the
Refractive index and Absorption index) of the new material. The material
may already be stored in the system’s Materials database. Check this first by
clicking Browse database - select the material if it is present to automatically
add the RI and Absorption values to the measurement.

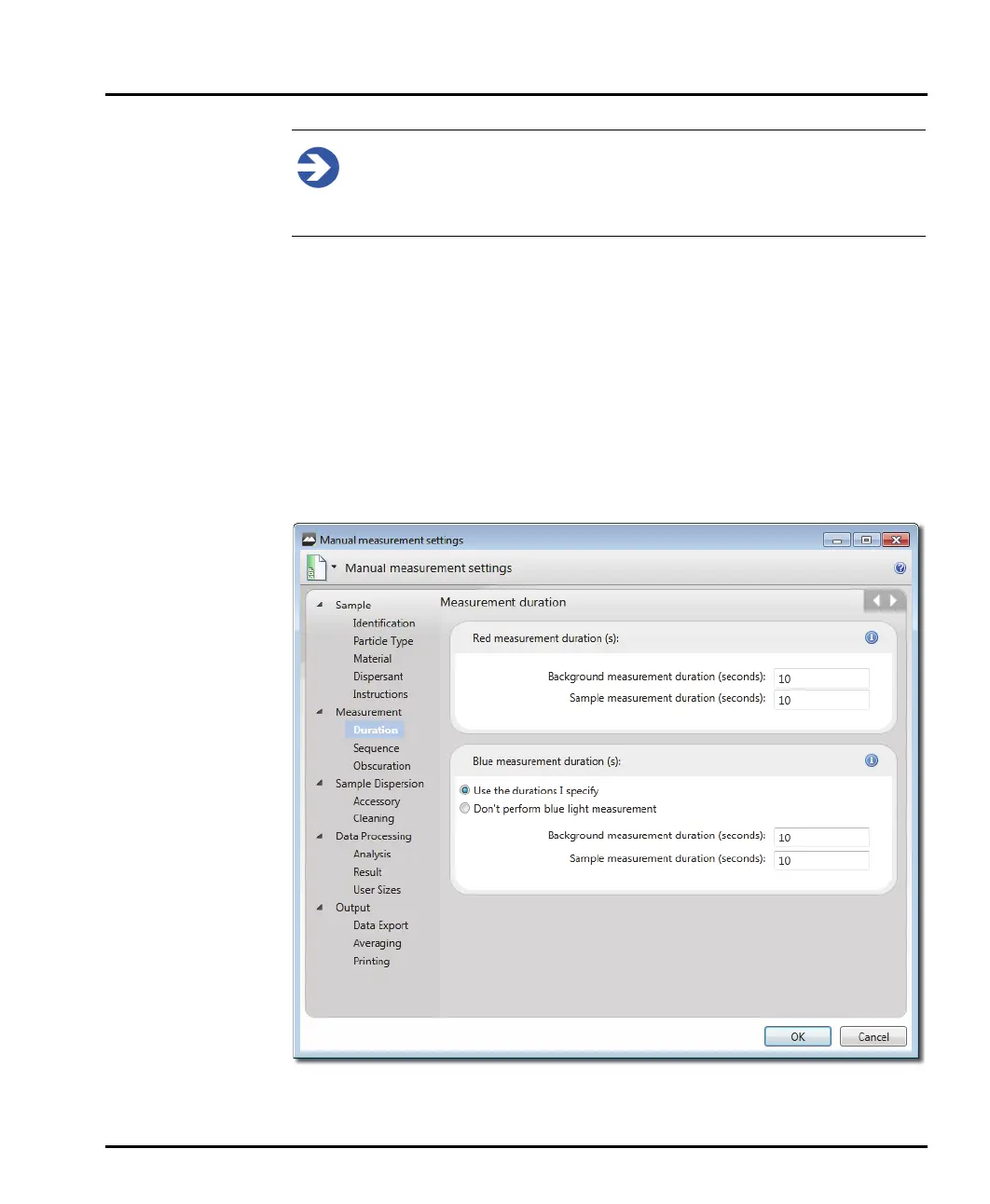

4. Use the Measurement-Duration section, shown below, to set up measure-
ment times for the red and blue measurements.

Malvern Mastersizer 3000 Specifications

General

Measurement principle	Laser diffraction
Blue laser wavelength	470 nm
Sample dispersion options	Wet and dry dispersion
Data acquisition rate	10 kHz
Particle size range	0.01 to 3500 microns
Laser type	He-Ne and solid state
Accuracy	Better than 1%
Repeatability	Better than 0.5%
Technology	Mie and Fraunhofer theories
Sample dispersion units	Hydro MV, Hydro LV, Aero S
Optical model	Mie theory
Power requirements	100-240 V, 50/60 Hz
Detector arrangement	Log-spaced array
