Operating elements for driving
3.1 Overview of the operating elements
3 - 24 3 112 993 en Operating manual GMK 6400
12.07.2013

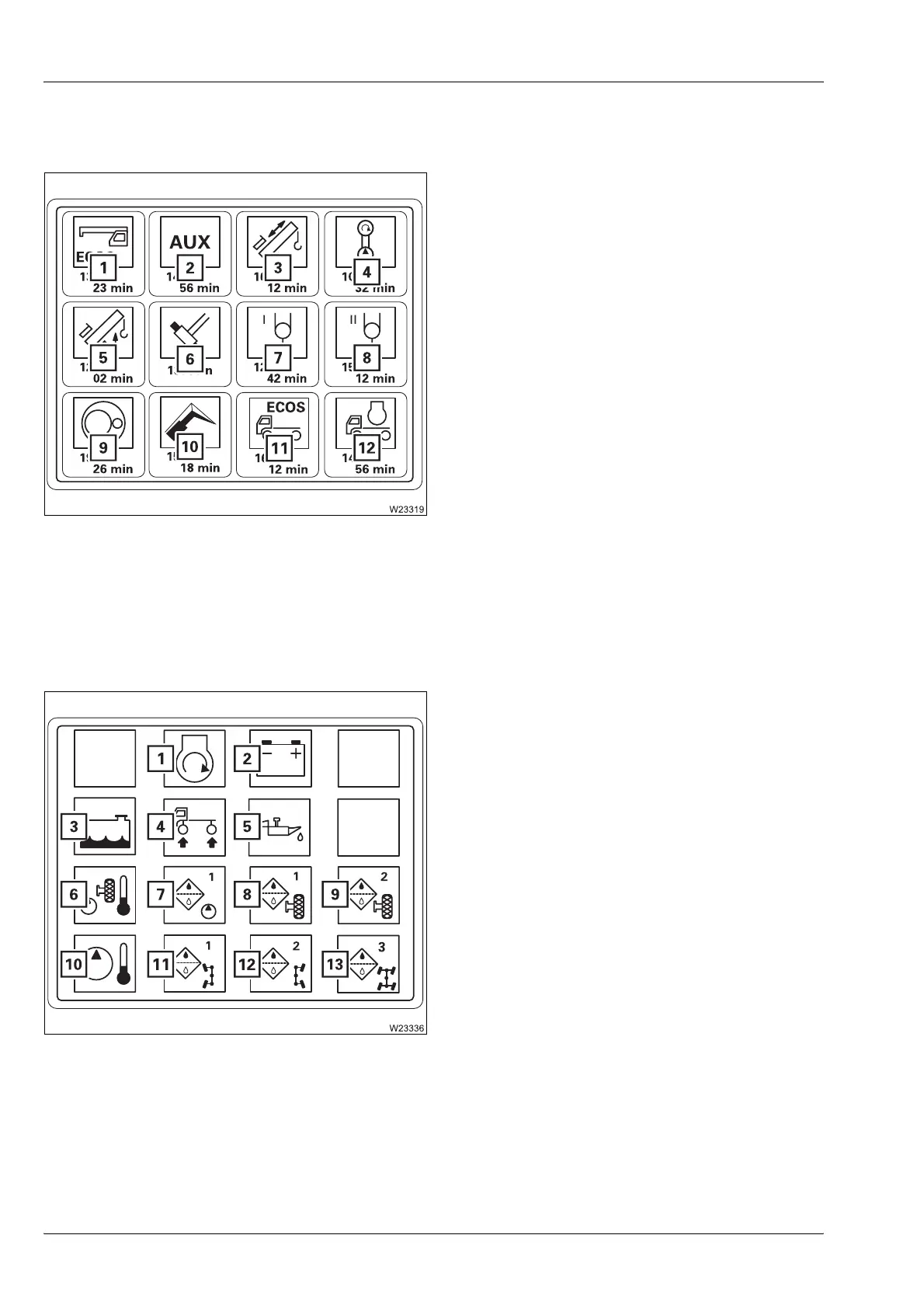

Operating hours
submenu
Description of the displays; Ã Displaying the operating hours, p. 5 - 21.
Warning submenu Description of the displays;
à Warning submenu, p. 5 - 47.
1 ECOS – superstructure
2 Auxiliary drive gears
3 Telescoping mechanism
4 Hydraulic system drive in the superstruc-
ture
5 Derricking gear
6 Locking system
7 Main hoist
8 Auxiliary hoist
1)
9 Slewing gear
10 Lattice extension
1), 2)
11 ECOS – carrier
12 Engine
1)
Additional equipment
2)
à Lattice extension operating instructions
1 Air intake inhibitor triggered
2 Voltage monitoring
3 Coolant level too low
4 Axle load or sideways tilt exceeded
5 Oil pressure too low
6 Hydraulic oil drive too hot
7 Replacing the hydraulic oil filter, drive 1
8 Replacing the hydraulic oil filter, drive 2
9 Hydraulic oil too hot
10 Replace the hydraulic oil filter
11 Replacing the hydraulic oil filter of steering
circuit 1
12 Replacing the hydraulic oil filter of steering
circuit 2
13 Replacing the hydraulic oil filter of steering
circuit axle 3 and 4
