Manitowoc GROVE GMK 6400

Operating elements for driving
3.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 3 - 35
12.07.2013

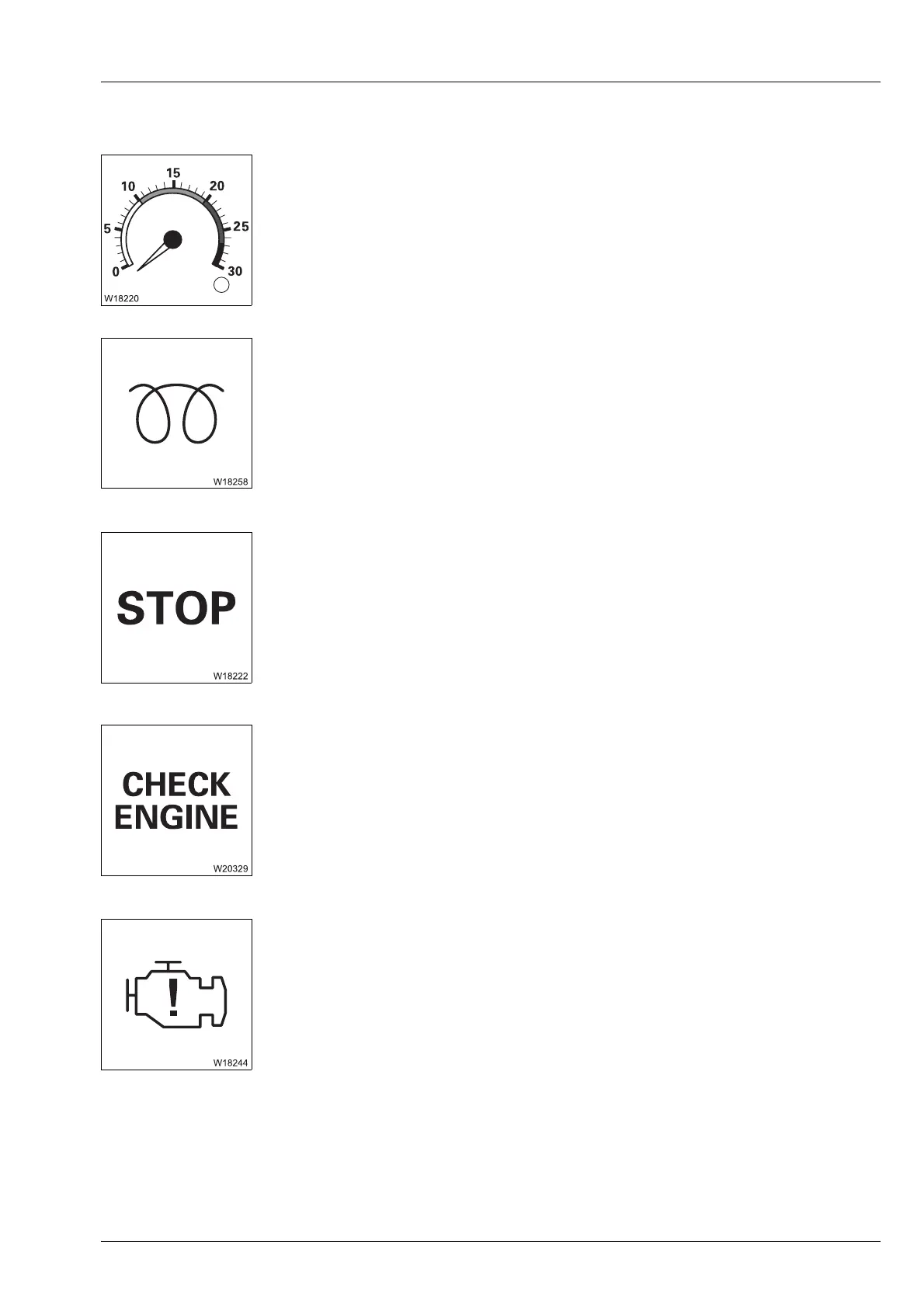

Instrument panel
Tachometer
Flame start system monitoring
STOP warning
Engine warning
Engine malfunction
s
Display, engine speed in rpm; à p. 4 - 22
–On: Engine not ready to start – is being warmed up
– Off: Engine is ready to start
à p. 4 - 18
–On: Turn engine off as quickly as possible – warning buzzer
sounds, warning message displayed
à p. 5 - 50
–On: Engine off – ignition on
or
Engine on – engine malfunction
– Off: Engine on – no malfunction
à p. 5 - 50
–On: Engine off – ignition on
or
Engine on – severe engine malfunction
– Off: Engine on – no malfunction
à p. 5 - 50
