Driving
5.1 Before driving
Operating manual GMK 6400 3 112 993 en 5 - 19
12.07.2013

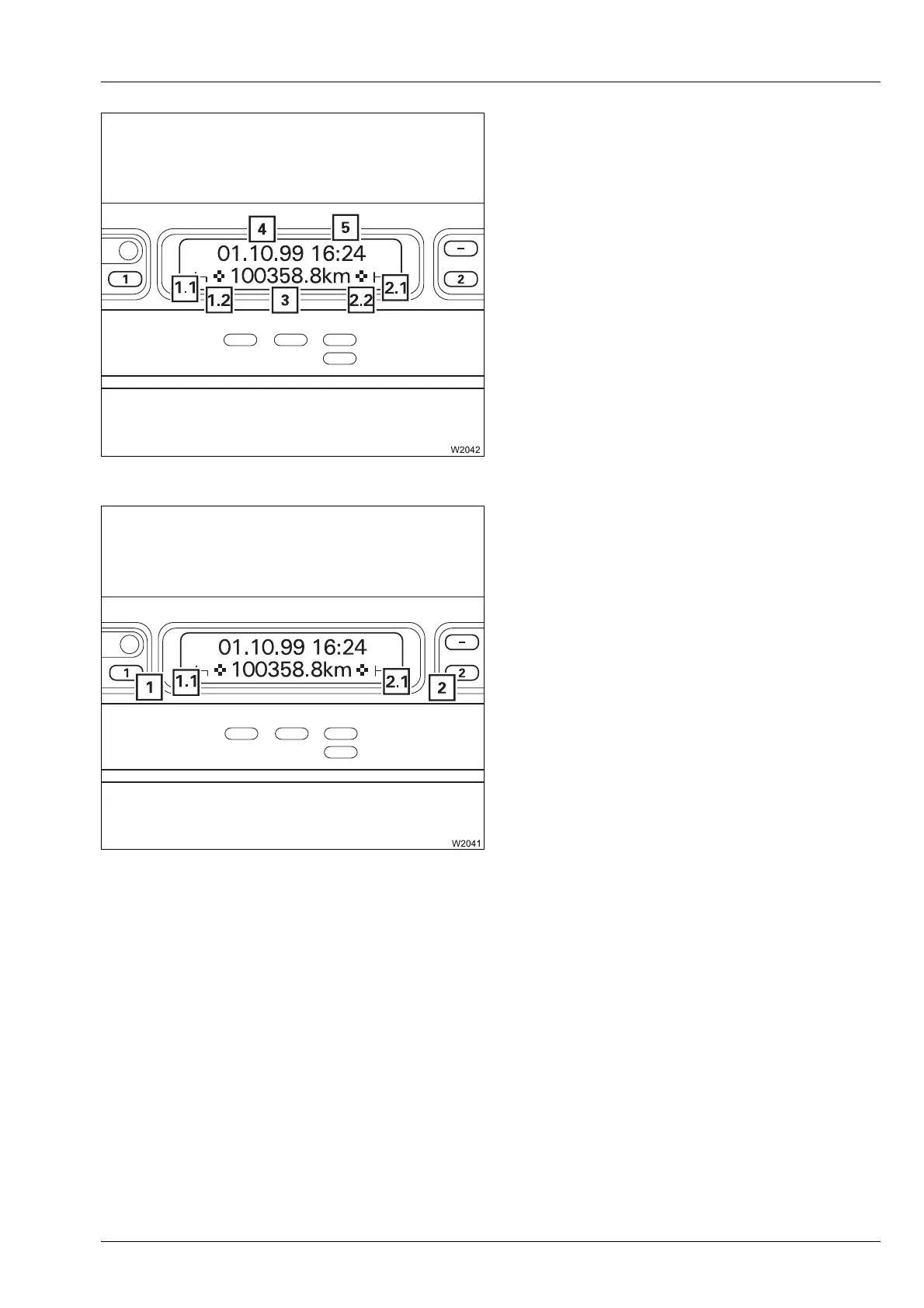

Display
If no malfunction has occurred, the
Tachograph
display now shows the basic display:
– Date (4) and time (5),
– Driver 1 time group (1.1),
– Driver 1 diagram sheet inserted (1.2),
– Total kilometres of the truck crane (3),
– Driver 2 time group (2.1),
– Driver 2 diagram sheet inserted (2.2).
Setting time groups
Set the time group for driver 1 using the but-
ton (1).
The set time group is shown with the symbol
(1.1).
Set the time group for driver 2 using the but-
ton (2).
The set time group is shown with the symbol
(2.1).
s
