11.09.2013
2 3 113 007 en Additional page GMK 6400
For transport
• Dismount the anemometer; à Operating
manual
.

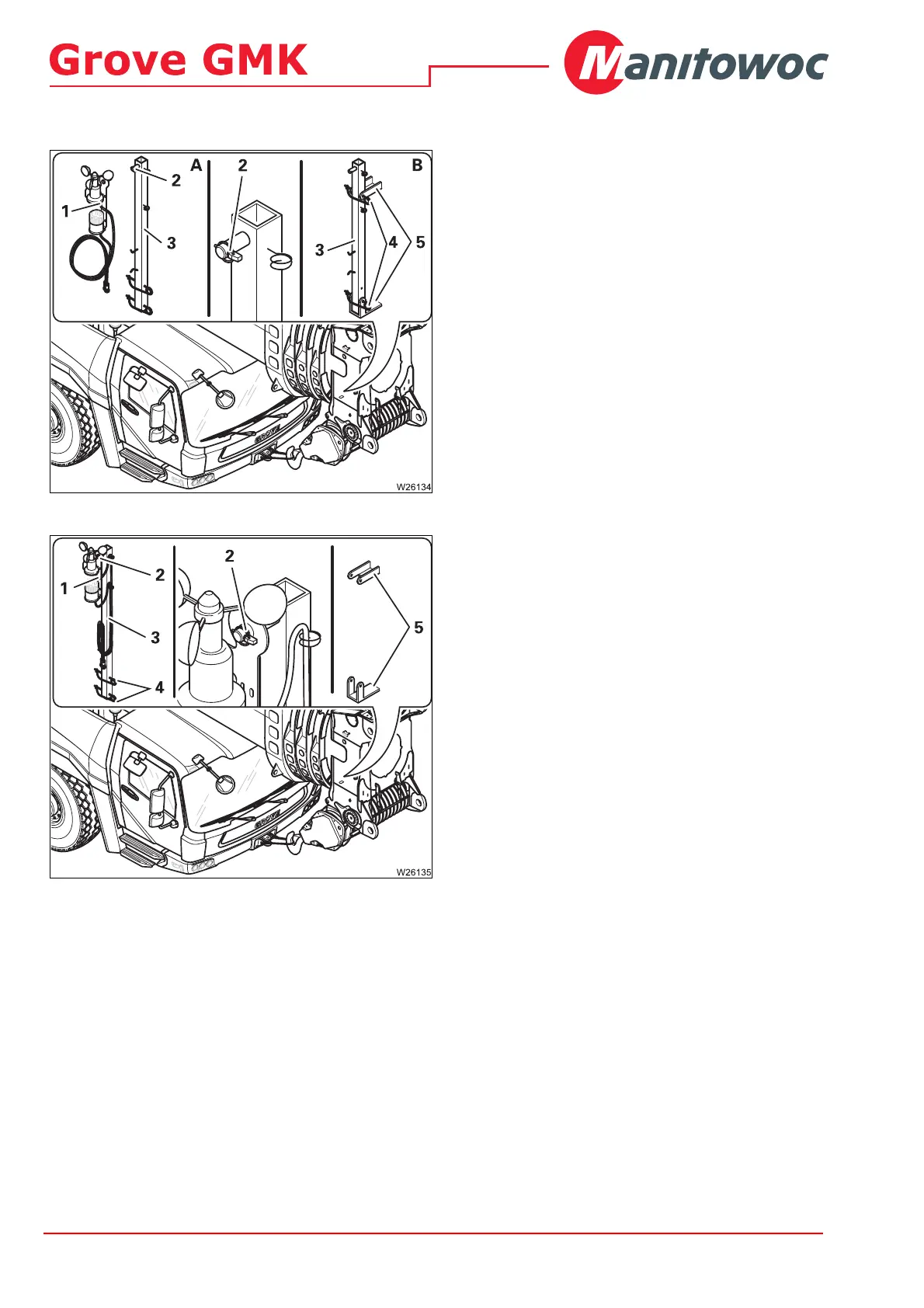

• (A) – Remove the anemometer (1) and the
air traffic control lights – if available – from
the rod (3).
• Fasten the linchpin (2) to the rod (3).
• (B) – Place the rod (3) in the clamp (5).
• Secure the rod with the retaining pins (4).
For operation
• Remove the pin (3) from the clamps (5).
You will need the retaining pins (4) later for
assembly.
• Fit the anemometer (1) and the air traf-
fic control lights onto the rod (3).
• Secure the anemometer with the linchpin
(2).
• Assemble the anemometer; à Operating
manual
.
