Driving
5.5 Separate steering
Operating manual GMK 6400 3 112 993 en 5 - 67
12.07.2013

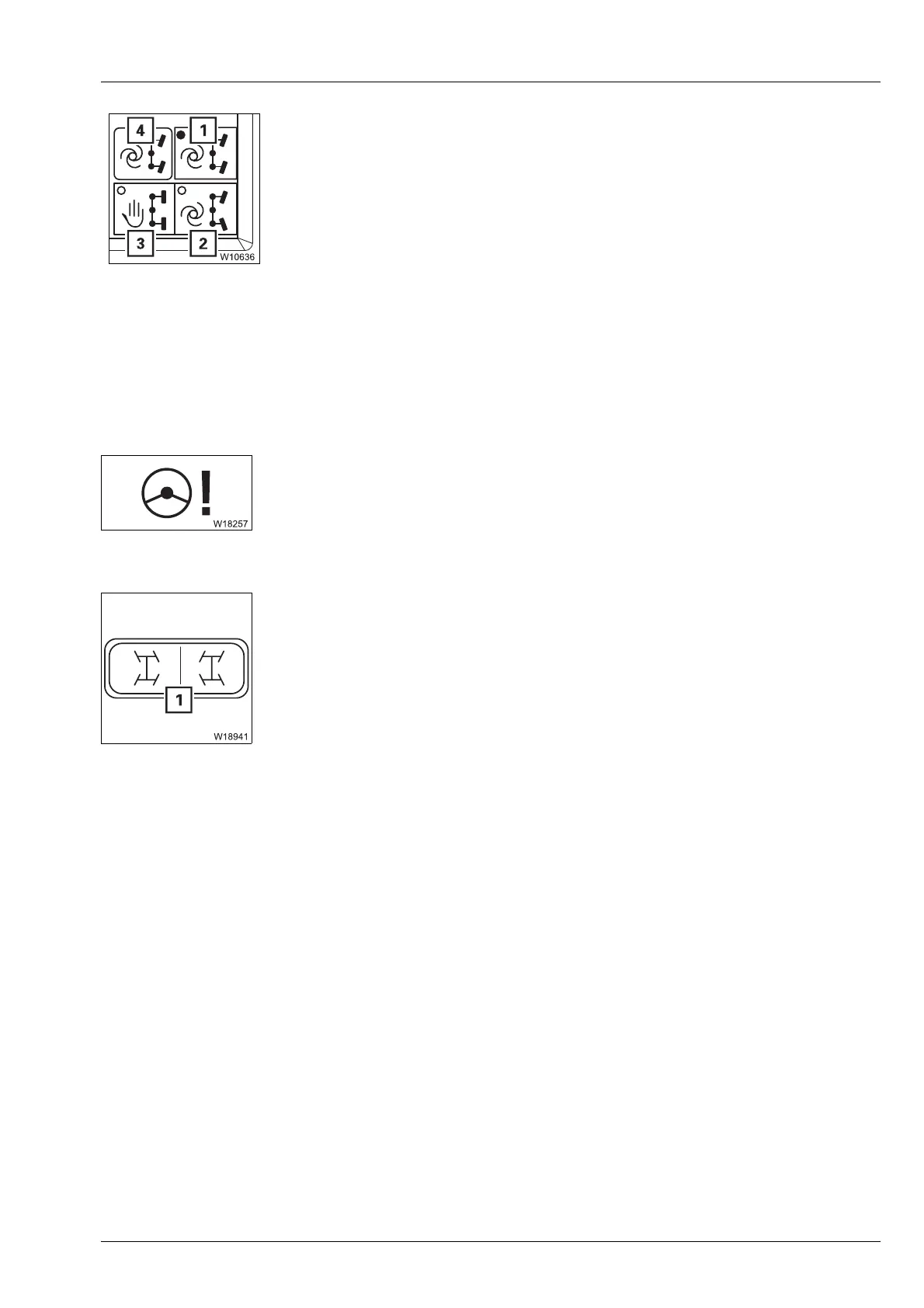

• Press the button for the required steering mode once.
The dot in the symbol turns green. The display (4) automatically shows the
related symbol, e.g. for crab travel mode.
H
When separate steering is switched on, the speed is limited to approx.
20 km/h (12 mph).
If the error symbol is displayed, contact Manitowoc Crane Care.
Manual
• Steer the 1st and 2nd axle lines with the steering wheel.
• Steer the 6th axle line with the button (1).
Axle lines 3, 4 and 5 are steered automatically depending on the 1st and 6th
axle lines and on the steering mode selected.
The axle lines are steered as long as you keep the button pressed or until an
end position is reached.
s
1 Crab travel mode, 6th axle line steered automatically
2 Driving around corners, 6th axle line steered automatically
3 Manual, 6th axle line is steered manually for driving around corners/
crab travel mode
– To turn to the left: • Push the button to the left
– To turn to the right:
• Push the button to the right
