Driving modes and rigging for on-road driving
6.3 Removing/installing main boom
6 - 30 3 112 993 en Operating manual GMK 6400
12.07.2013
Lifting on to the
turntable

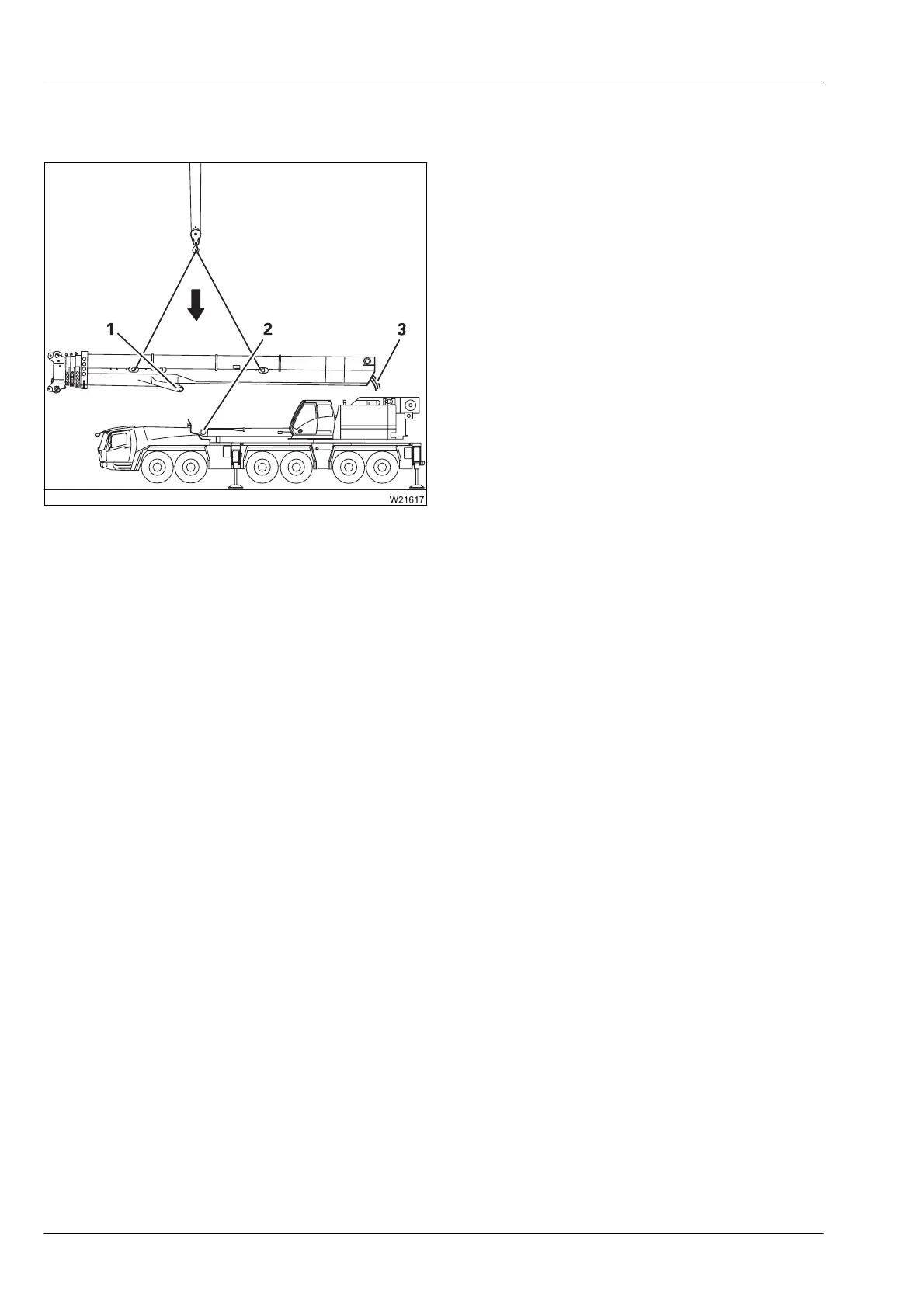

• Lift the main boom backwards and down-
wards on to the turntable. Make sure that:
– The connection lines (3) do not hang
loose.
– The pivot point (1) is higher than the
driver's cab.
– The pivot point (1) is located forwards of
the derricking cylinder (2).
– The connecting points are not tilted.
