Driving modes and rigging for on-road driving
6.4 Installing/removing outrigger beams
6 - 42 3 112 993 en Operating manual GMK 6400
12.07.2013

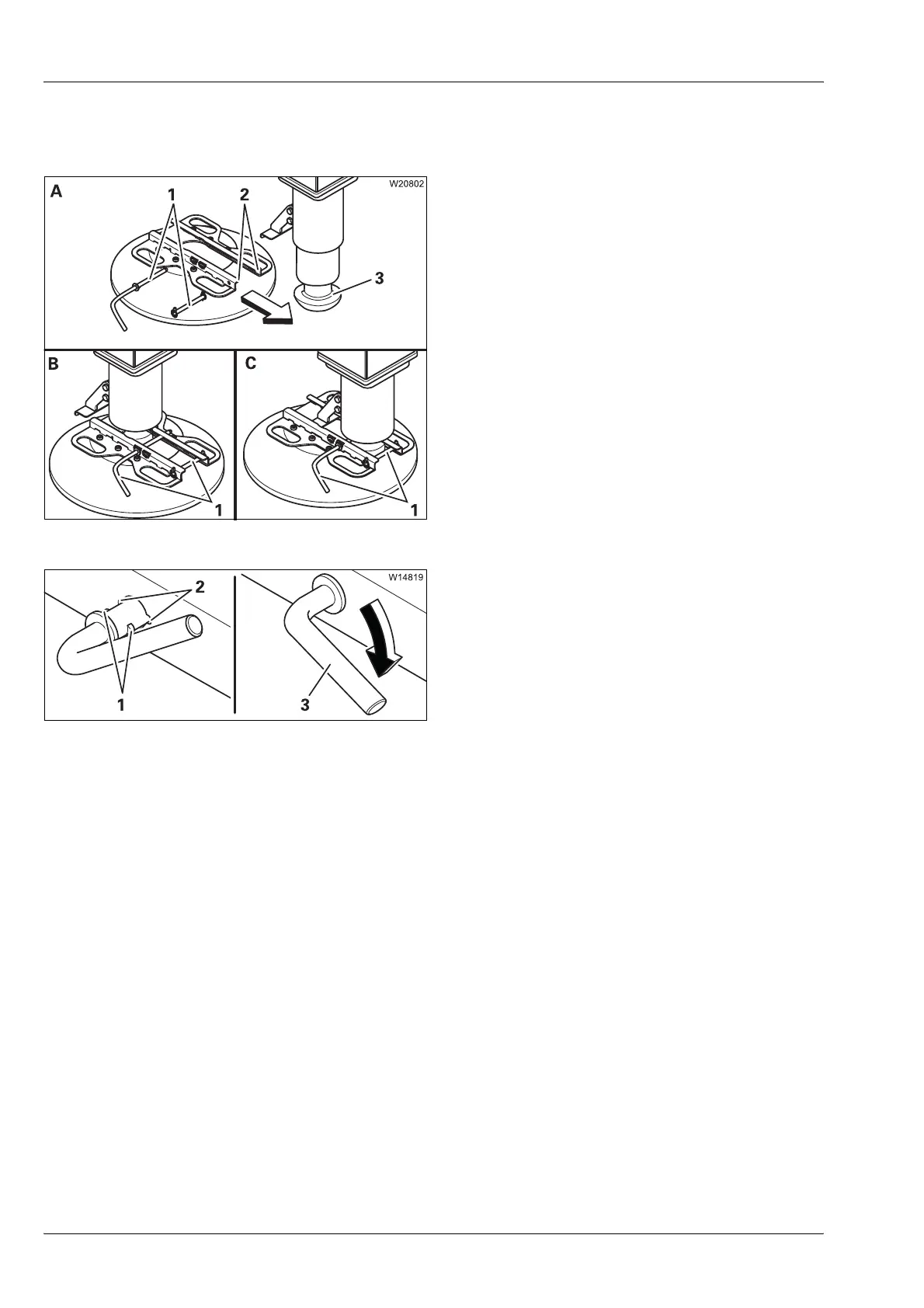

Attaching
outrigger pads
After mounting the outrigger beam, you must attach the outrigger pad.
• (A) – Remove the pin (1).
• Extend the outrigger cylinder far enough so
that the bearing surface (3) is below the
guide (2).
• Push the outrigger pad onto the outrigger
cylinder.
• Move the outrigger pad into required posi-
tion:
– On site, move it to the working position
(B).
– If you need to drive to the site, in driving
position (C).
• Insert the pins (1) and secure them.
Securing the pin
• Plug the pin with the peg (1) through the cut-
out (2).
• Turn the grip (3) downward.
