Driving modes and rigging for on-road driving
6.4 Installing/removing outrigger beams
6 - 50 3 112 993 en Operating manual GMK 6400
12.07.2013

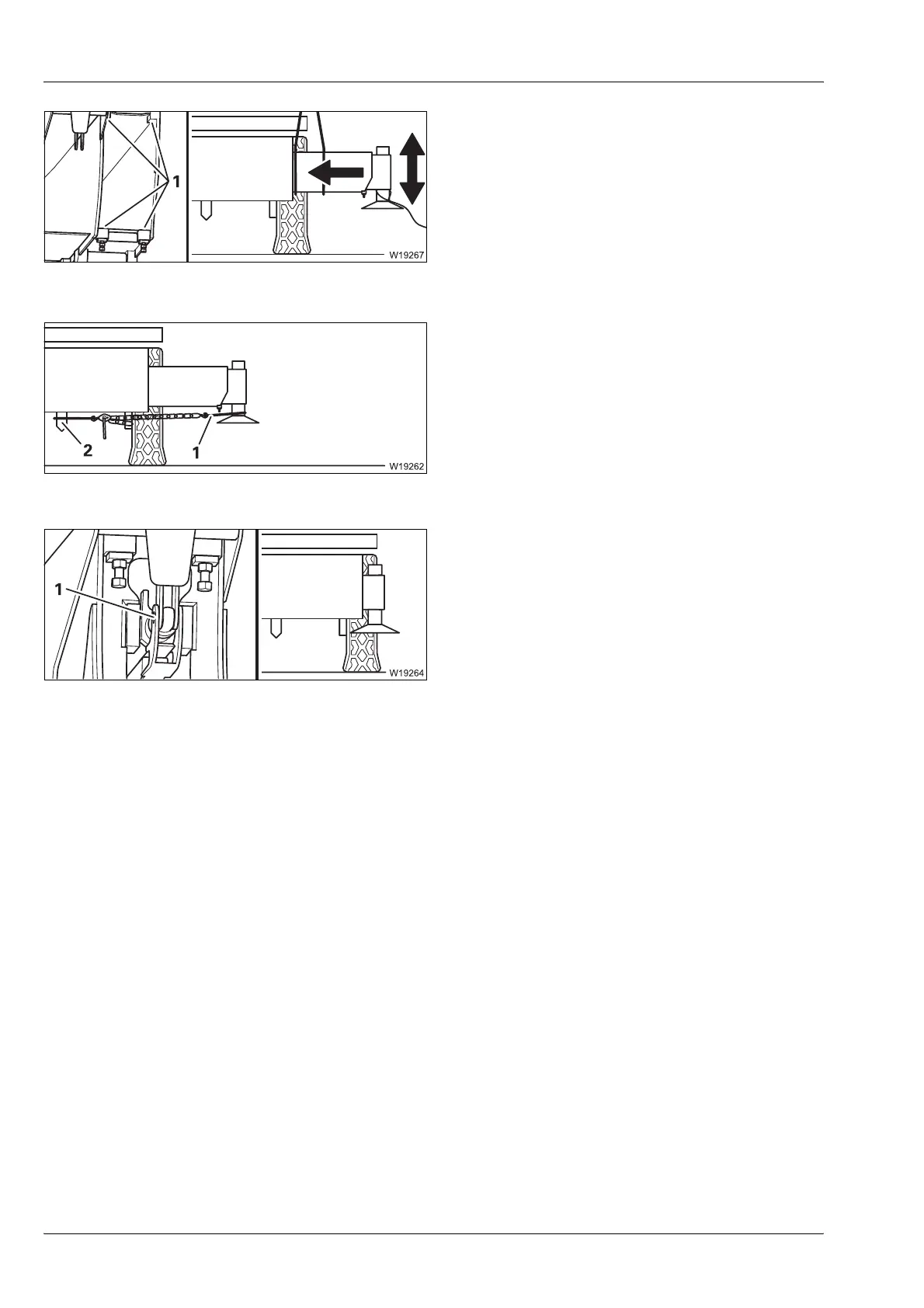

• Lift the outrigger beam as far as possible
into the outrigger box.
Correct the height so that it does not remain
hanging on the edges (1).
• Remove the lifting gear from the centre of
gravity.
• Fasten the lifting gear (1) and a chain hoist.
• Fasten the chain hoist with a suitable
mounting device on the bore hole (2).
• Pull the outrigger beam in so far until the
connecting points (1) align.
• Remove the chain hoist and lifting gear.
