Operating elements for crane operation

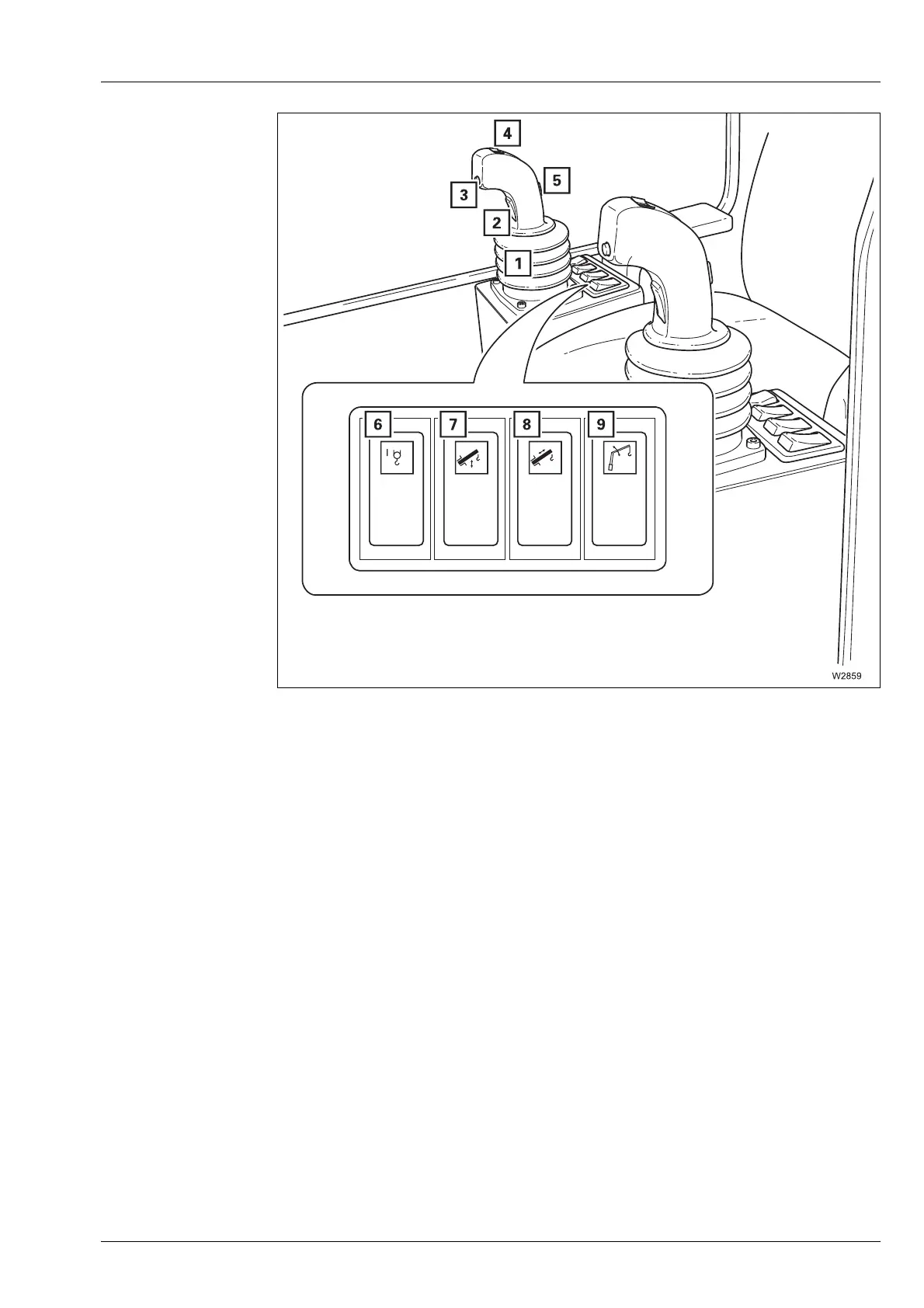

9.1 Overview of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 15
12.07.2013
Right
1 Right control lever
(configuration according to version)
à p. 9 - 16
2 Dead man's switch
à p. 9 - 63
3 Horn button
4 Hoist high-speed mode on/off
à p. 9 - 76
5 Main hoist slewing indicator
à p. 11 - 57
6 Main hoist on/off
à p. 9 - 76
7 Derricking gear on/off
à p. 9 - 80
8 Telescoping mechanism on/off
à p. 9 - 81
9 Derrick lattice extension on/off
1), 2)
1)
Additional equipment
2)
à Lattice extension operating instructions
