Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 17
12.07.2013
Version 2 In version 2, the right control lever is configured with the Telescope function.

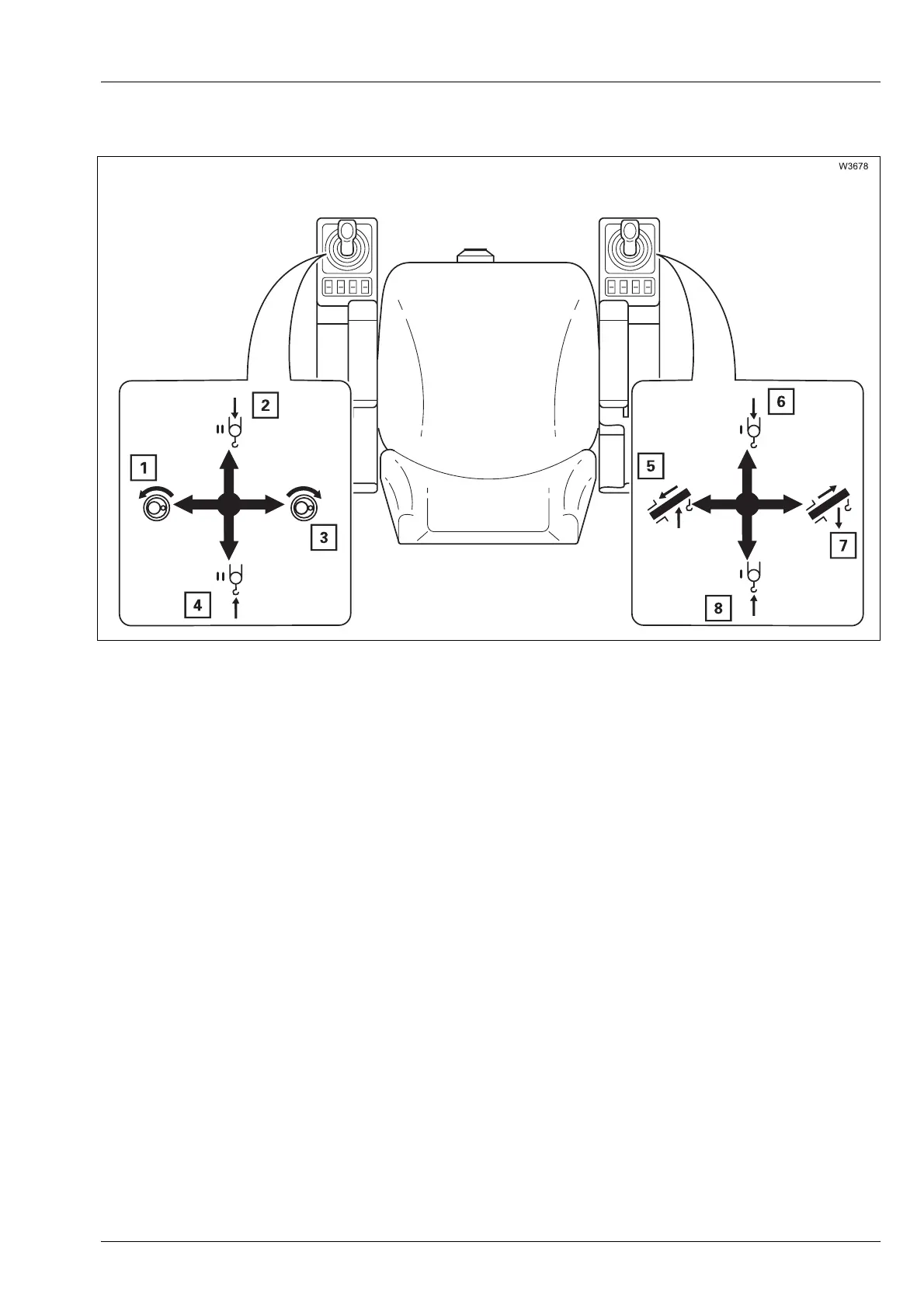

Left control lever Right control lever
1 Slew to the left 5 Raise/retract
2)
3 Slew to the right 7 Lower/extend
2)
2 Lower the auxiliary hoist
1)
6 Lower the main hoist
4 Raise the auxiliary hoist
1)
8 Lift the main hoist
1)
Additional equipment
2)
Derrick the lattice extension; à Lattice extension operating instructions
