Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 33
12.07.2013

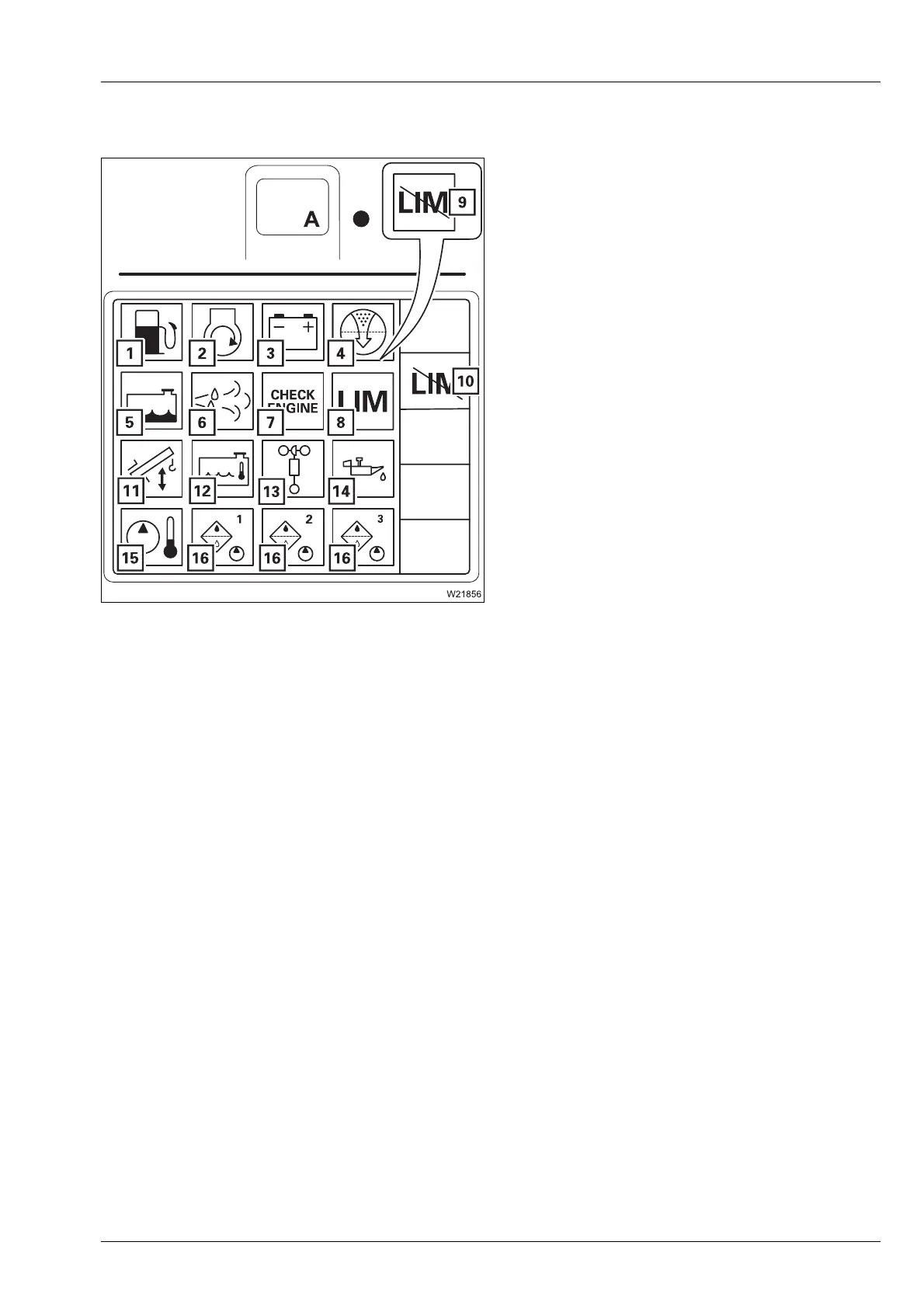

Warning submenu Description of the displays; à Warning submenu, p. 11 - 111.
For the superstructure
s
1 Refuel
2 Air intake inhibitor triggered
1)
3 Voltage monitoring
4 Replace air filter
5 Coolant level too low
6 Top up DEF
1)
7 Engine malfunction
8 Torque reduction
1)
9 Torque reduction overridden
1)
10 Torque reduction override button
1)
;
à p. 10 - 14
11 Correct main boom angle
12 Coolant too hot
13 Anemometer not connected
14 Oil pressure too low
15 Hydraulic oil too hot
16 Replace hydraulic oil filter
1)
Additional equipment
