Manitowoc GROVE GMK 6400 User Manual

Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 37
12.07.2013
Enter slewing angle submenu
à Slewing angle, p. 11 - 119.
Enter objects submenu
à Entering objects, p. 11 - 121.
s

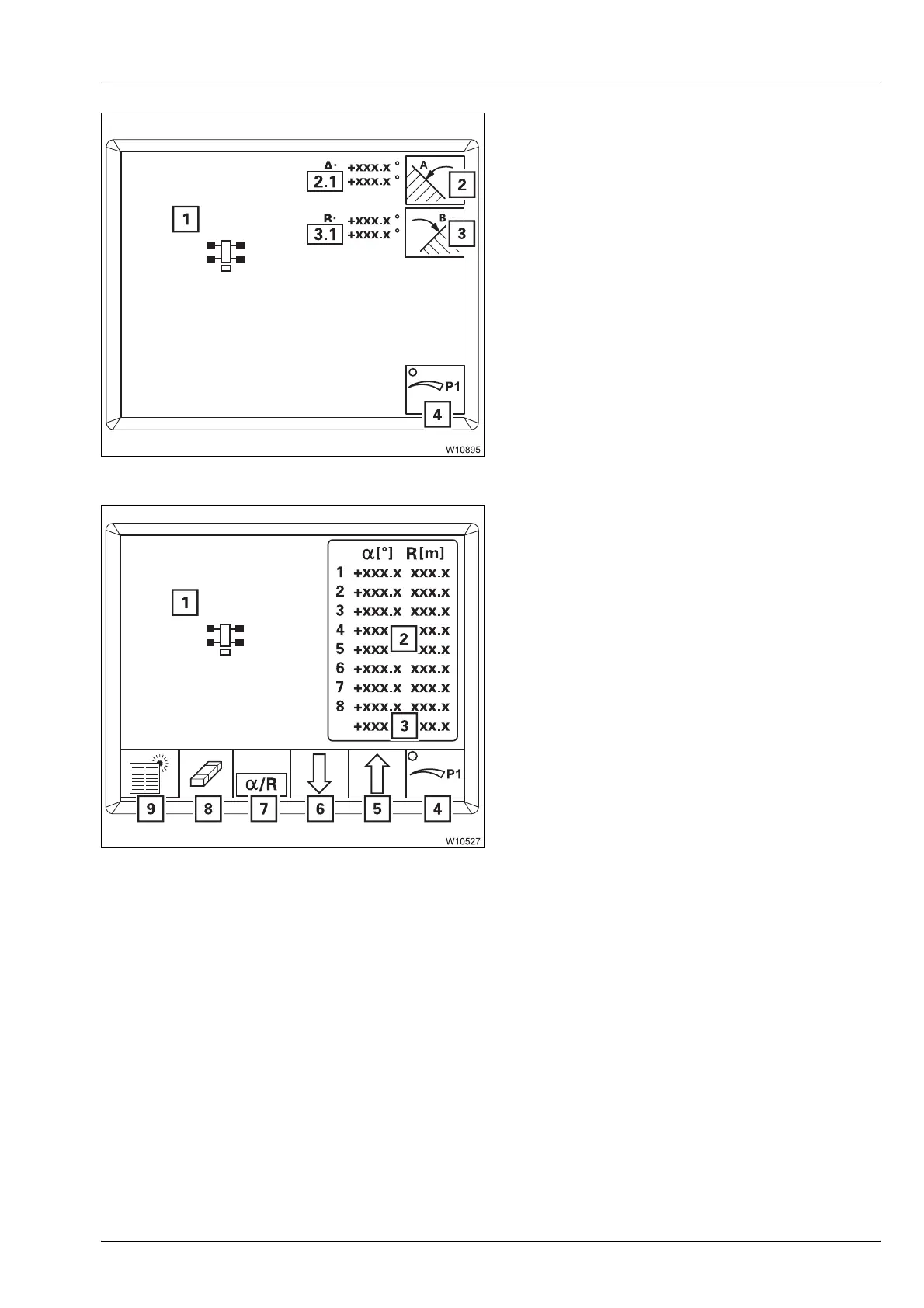

1 Limited slewing angle display
2 Select slewing angle A
2.1 Maximum/current slewing angle A dis-
play
3 Select slewing angle B
3.1 Maximum/current slewing angle B dis-
play
4 Manual input on/off
1 Limitation by object display
2 Point data display
3 Current point data display
4 Manual input on/off
5 Select previous point
6 Select next point
7 Select angle/working radius
8 Delete selected point data
9 Delete all point data

Manitowoc GROVE GMK 6400 Specifications

General

Brand	Manitowoc
Model	GROVE GMK 6400
Category	Construction Equipment
Language	English
