Operating elements for crane operation
9.2 Short description of the operating elements
9 - 78 3 112 993 en Operating manual GMK 6400
12.07.2013
Submenu

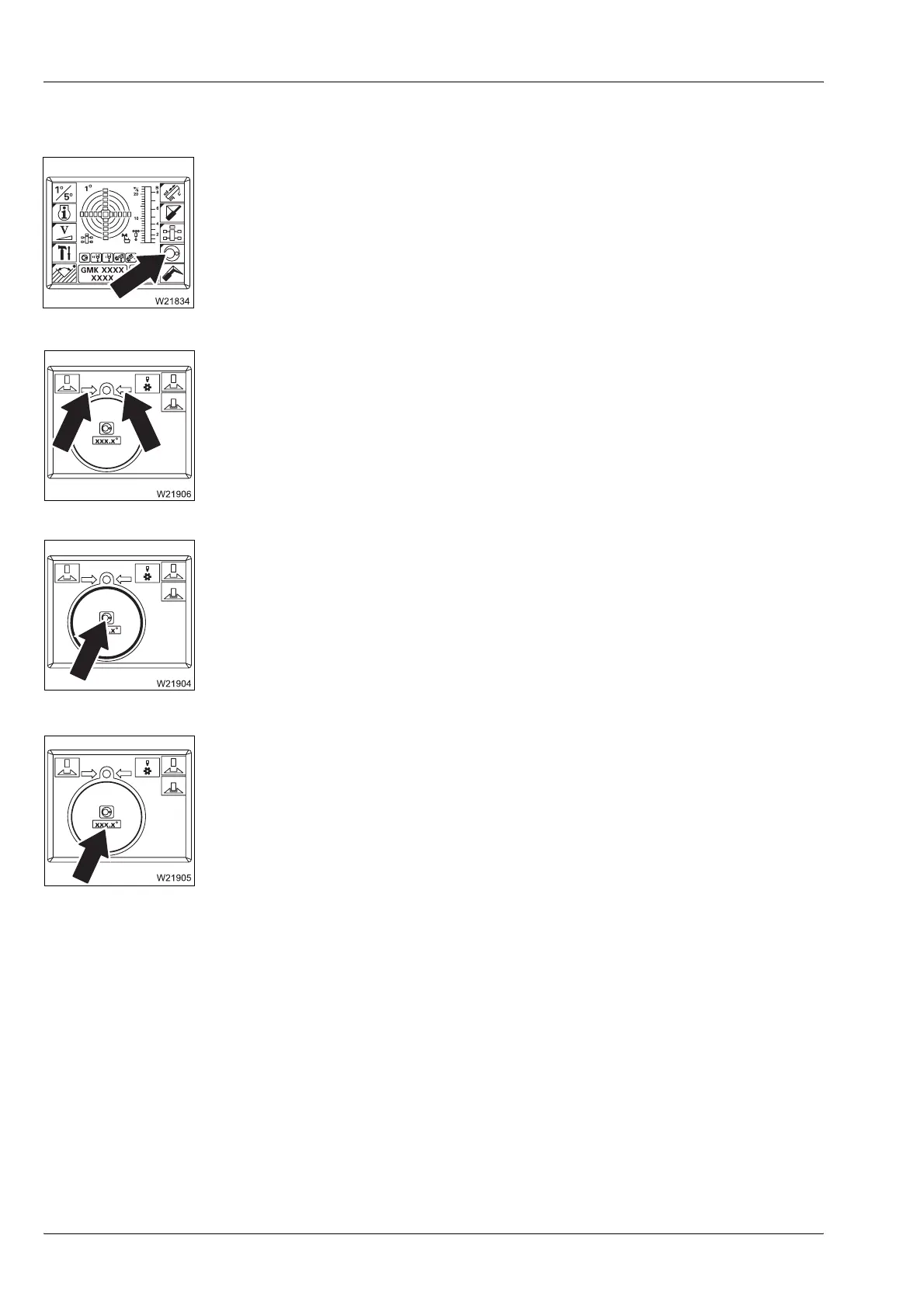

Slewing gear/houselock submenu
Display slewing direction to 0°/180°
Current position ± 20° in front of the 0° or 180° superstructure position.
Slewing gear display
Current slewing angle display
– To open: Press button 1 x – submenu opens
– Both arrows: 0° or 180° superstructure position reached
–One arrow: Arrow direction = slewing direction to reach 0° or 180°
– Green: Slewing gear switched on
–Red: Slewing gear switched off
à p. 11 - 99
0°: Position
0° to the rear
180°: Position 180° to the front
+0.1 to +180.0°: Turned to the right from 0°
–0.1 to –179.9°: Turned to the left from 0°
à p. 11 - 101
