Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 113
12.07.2013

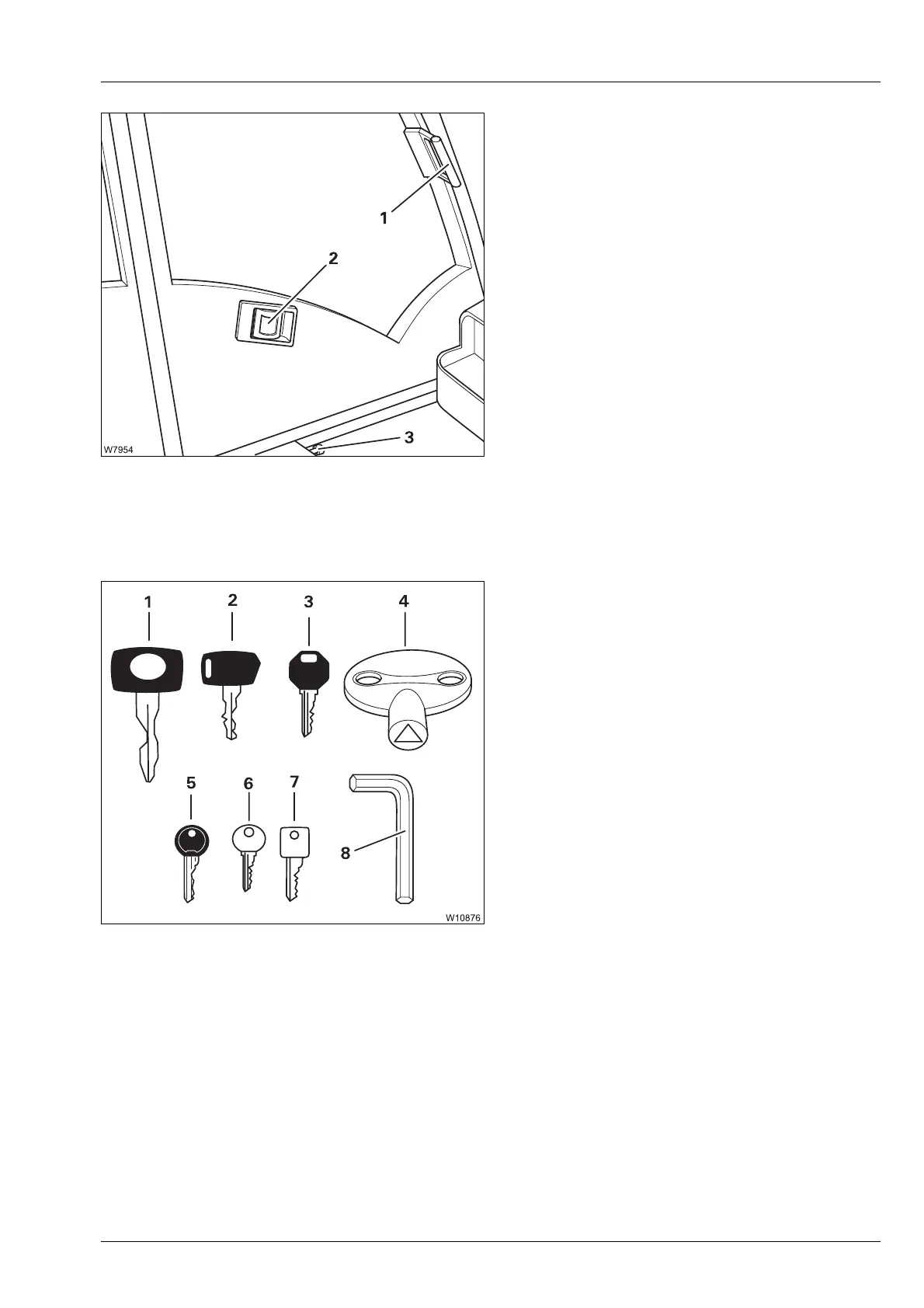

From inside
–Closing
Pull unlocking lever (3), push door forwards
by handle (1) – engages.
Locking from inside not possible.
– Opening
Pull unlocking lever (2), push door back by
handle (1) – engages.
Keys Different keys are supplied.
1 Crane cab door lock
2 Crane cab ignition lock
3 Key-operated override switch
4 Distribution box
5 Windscreen washing system reservoir
6 Boom floating position lock
1)
7 Slewing gear freewheel lock
1)
8 Covers
1)
Additional equipment
