11.5 Working range limiter
Operating manual GMK 6400 3 112 993 en 11 - 119
12.07.2013
The limit value for the working radius affects the representation of defined
objects.

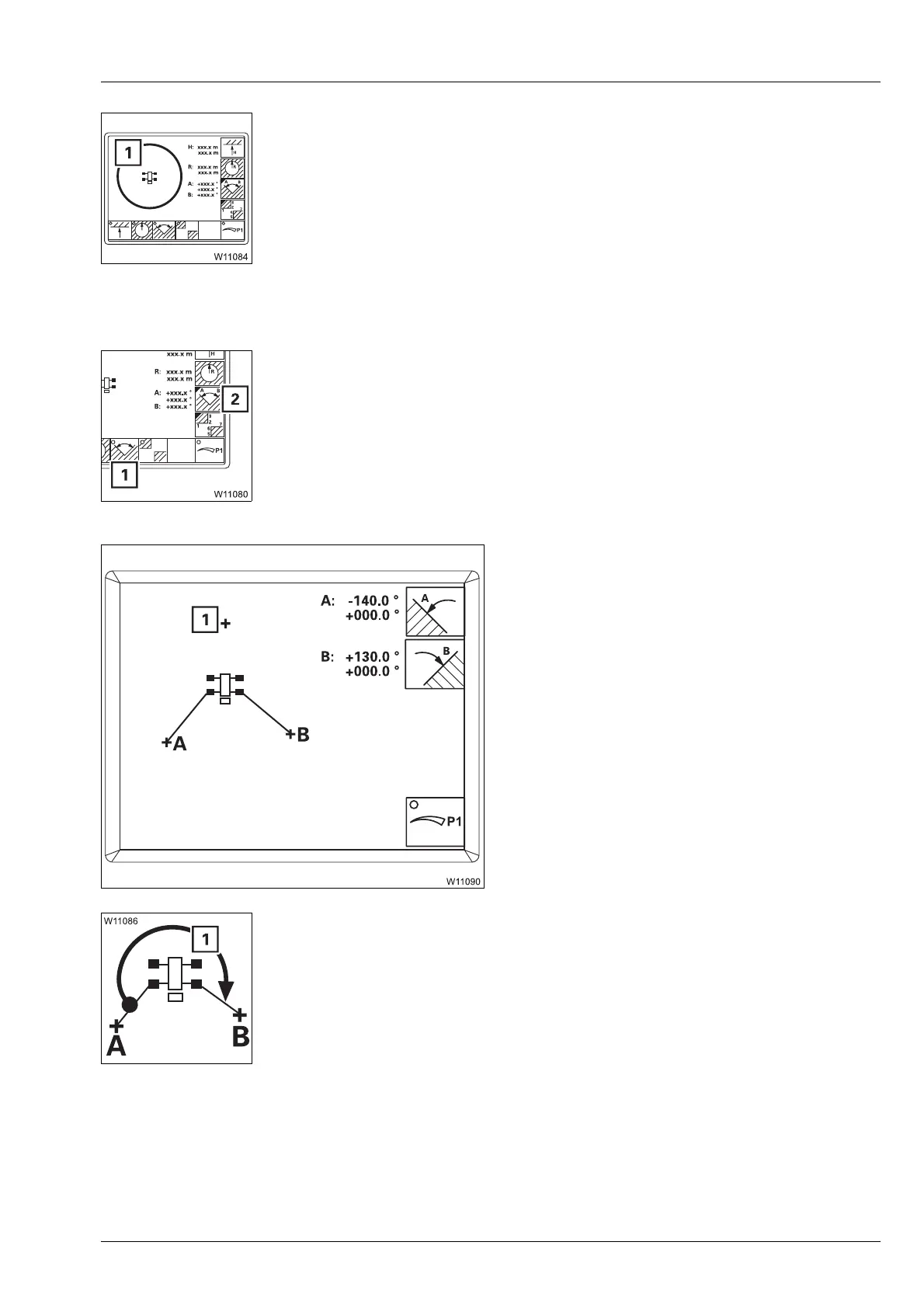

Only points that are within the limit value (1) will be displayed.
Slewing angle Slewing angles are entered in a submenu.
Before entering values, monitoring (1) must be switched off – dot is black;
à p. 11 - 126.
• Press the (2) button once.
The
Enter slewing angle submenu will open
Display of the slewing angles
The cross (1) shows the current position of the
main boom.
– The slewing angle A limits slewing to the left
– The slewing angle B limits slewing to the
right
The permissible slewing range is represented by the angle stretching clock-
wise from A to B.
Approx. 270° in this illustration – arrow (1).
