Correction sheet GMK6400
3 302 804 en
5
27.08.2018
7 sheave hook block
5 sheave hook block
s

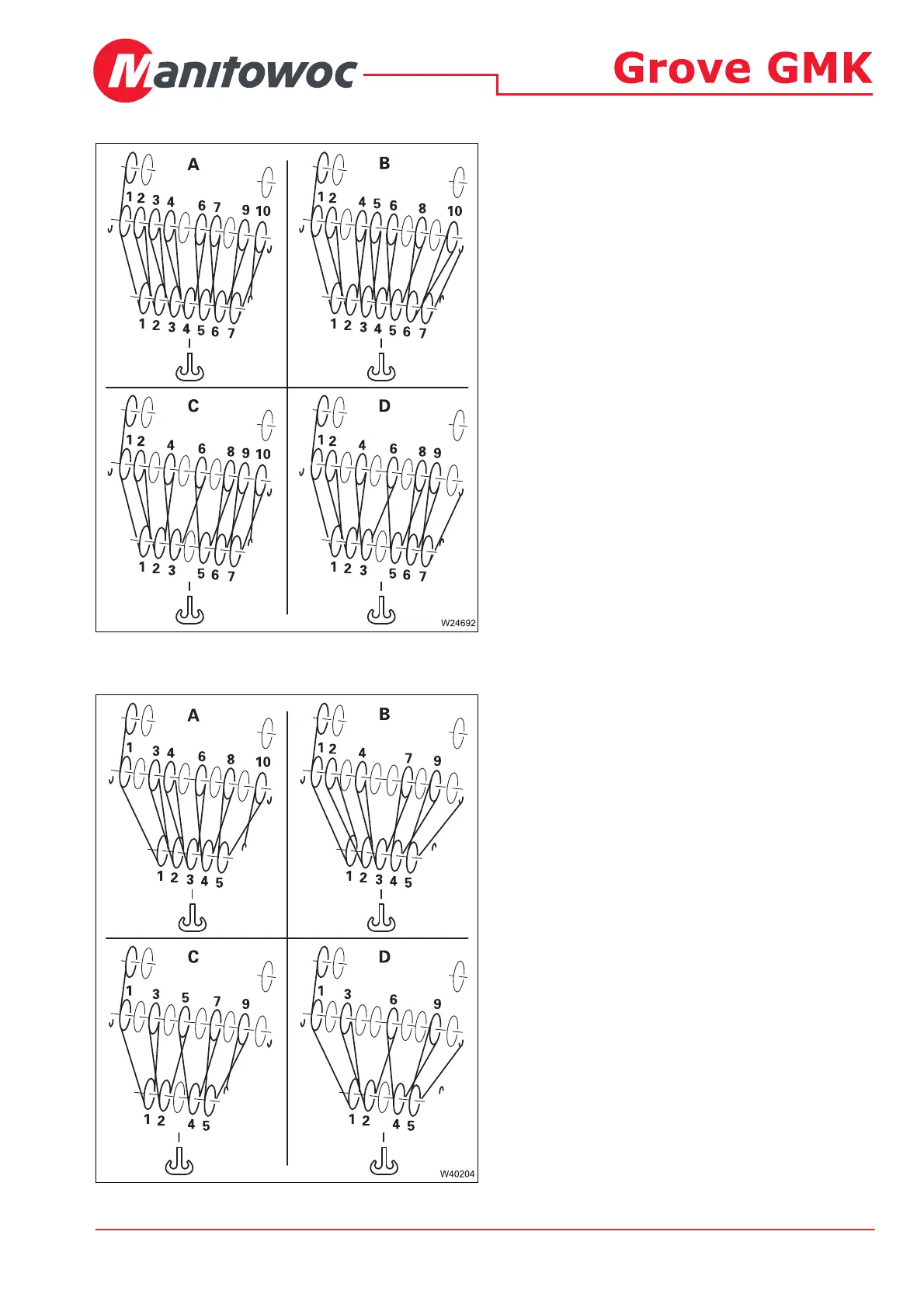

Reeving
A
15x
B
14x
C
13x
D
12x
Reeving
A
11x
B
10x
C
9x
D
8x
6
8
