12.7 Rigging/unrigging the counterweight
Operating manual GMK 6400 3 112 993 en 12 - 59
12.07.2013
12.7 Rigging/unrigging the counterweight
Depending on the version, the GMK 6400 can be equipped with a counter-
weight mass of 15 t (33 069 lbs) to 135 t (297 624 lbs).

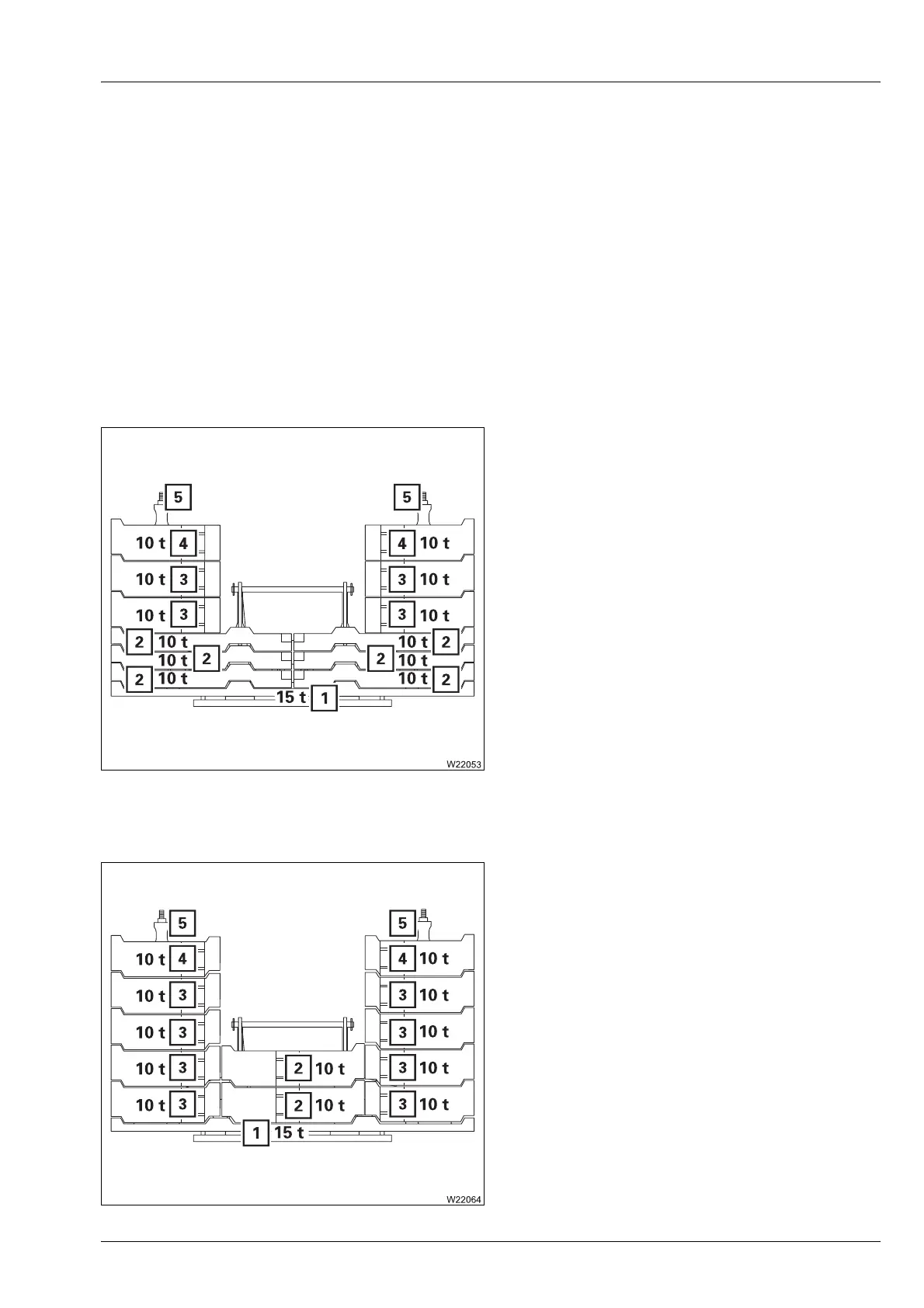

12.7.1 Counterweight sections
Depending on the execution, there is version A or B.
Version A The counterweight combinations can be comprised of:
– One 15 t base plate (1)
– Six 10 t counterweight sections (2)
– Four 10 t counterweight sections (3)
– Two 10 t counterweight sections
1)
(4)
– Two tensioning devices (5)
Version B The counterweight combinations can be comprised of:
– One 15 t base plate (1)
– Two 10 t counterweight sections (2)
– Eight 10 t counterweight sections (3)
– Two 10 t counterweight sections
1)
(4)
– Two tensioning devices (5)
1)
Additional equipment
1)
Additional equipment
