Rigging work
12.7 Rigging/unrigging the counterweight
12 - 66 3 112 993 en Operating manual GMK 6400
12.07.2013

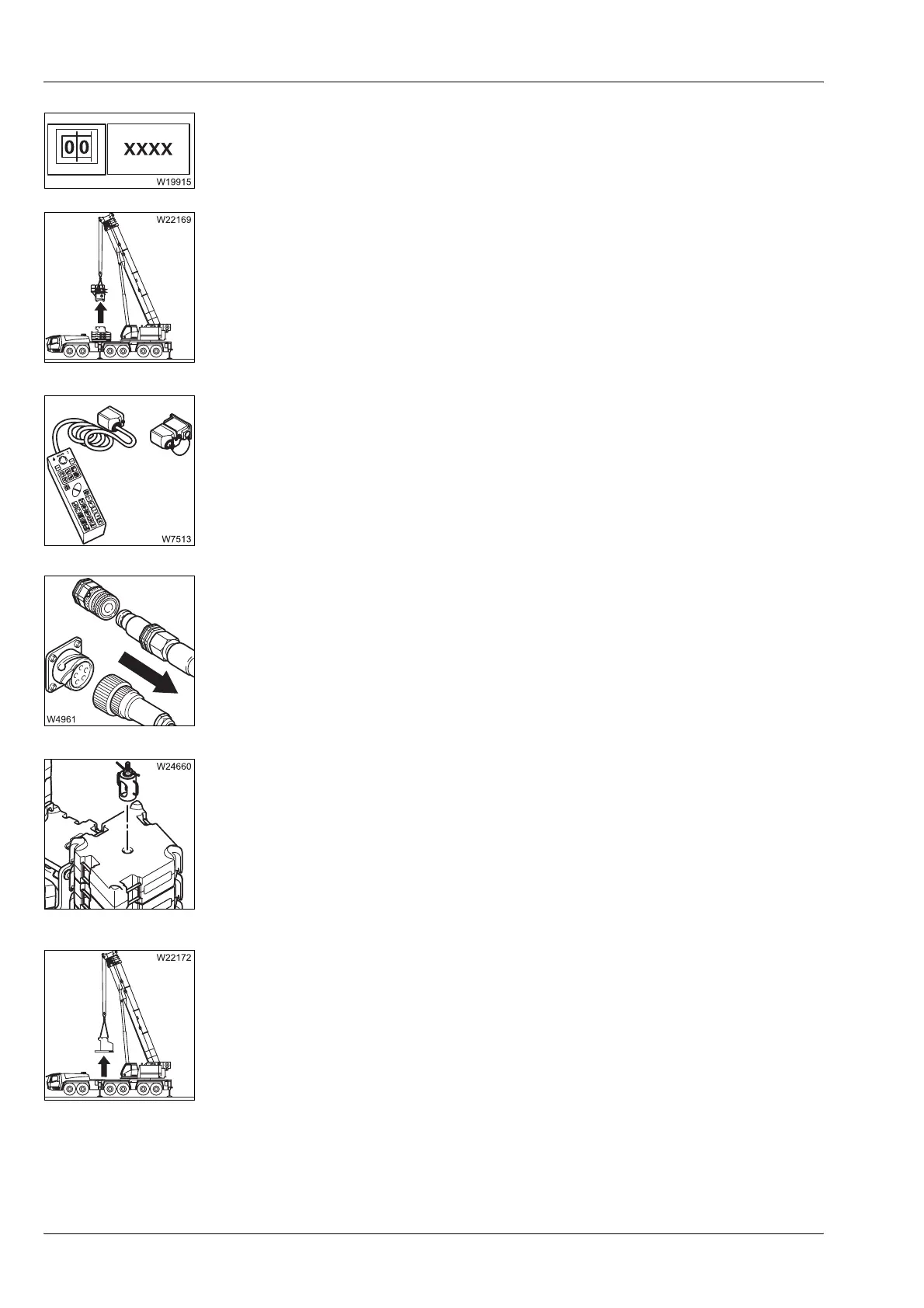

5. Enter the current rigging mode with the presently rigged counterweight
version on the RCL;
à p. 11 - 23.
6. If required, remove the auxiliary hoist;
à Rigging the auxiliary hoist,
p. 12 - 91.
7. Disconnect the hand-held control;
à Connecting/disconnecting the hand-held control, p. 12 - 21.
8. Remove the hydraulic and electrical connections between the 15 t base
plate and the turntable;
à Establishing/disconnecting the hydraulic connection, p. 12 - 100,
à Making/breaking the electrical connection, p. 12 - 101.
9. Release the counterweight sections;
à p. 12 - 79.
10. Lift counterweight sections:
– Lift 10 t counterweight sections individually, one after another;
à p. 12 - 67.
– Lift 15 t base plate off the counterweight platform;
à p. 12 - 70.
