Manitowoc GROVE GMK 6400

Rigging work
12.7 Rigging/unrigging the counterweight
12 - 76 3 112 993 en Operating manual GMK 6400
12.07.2013

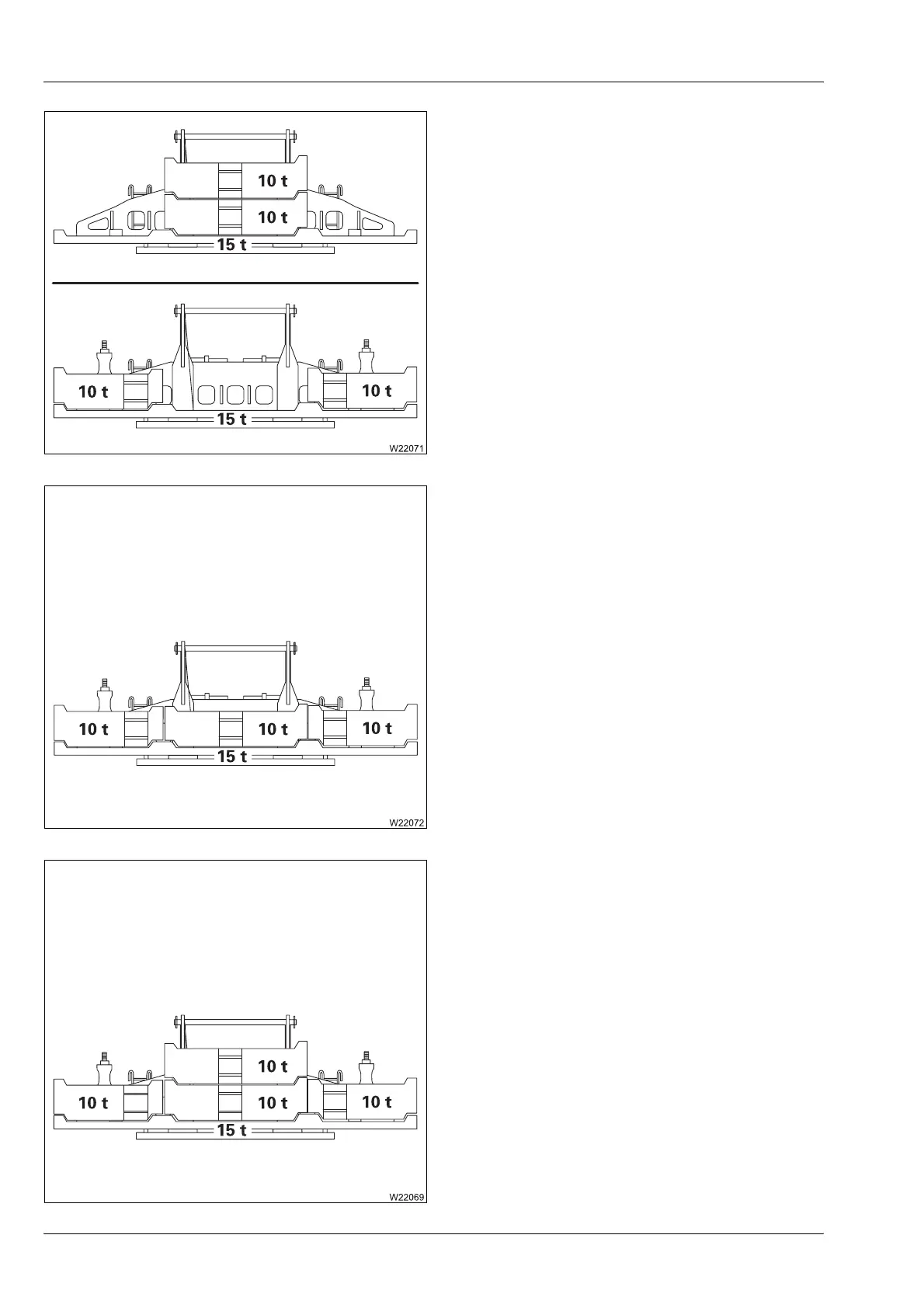

35 t (77 162 lbs)
– 15 t base plate
– Two 10 t blocks
45 t (99 208 lbs)
– 15 t base plate
– Three 10 t blocks
55 t (121 254 lbs)
– 15 t base plate
– Four 10 t sections
