Rigging work
12.7 Rigging/unrigging the counterweight
Operating manual GMK 6400 3 112 993 en 12 - 75
12.07.2013
Combinations for
the basic equip-
ment in version B

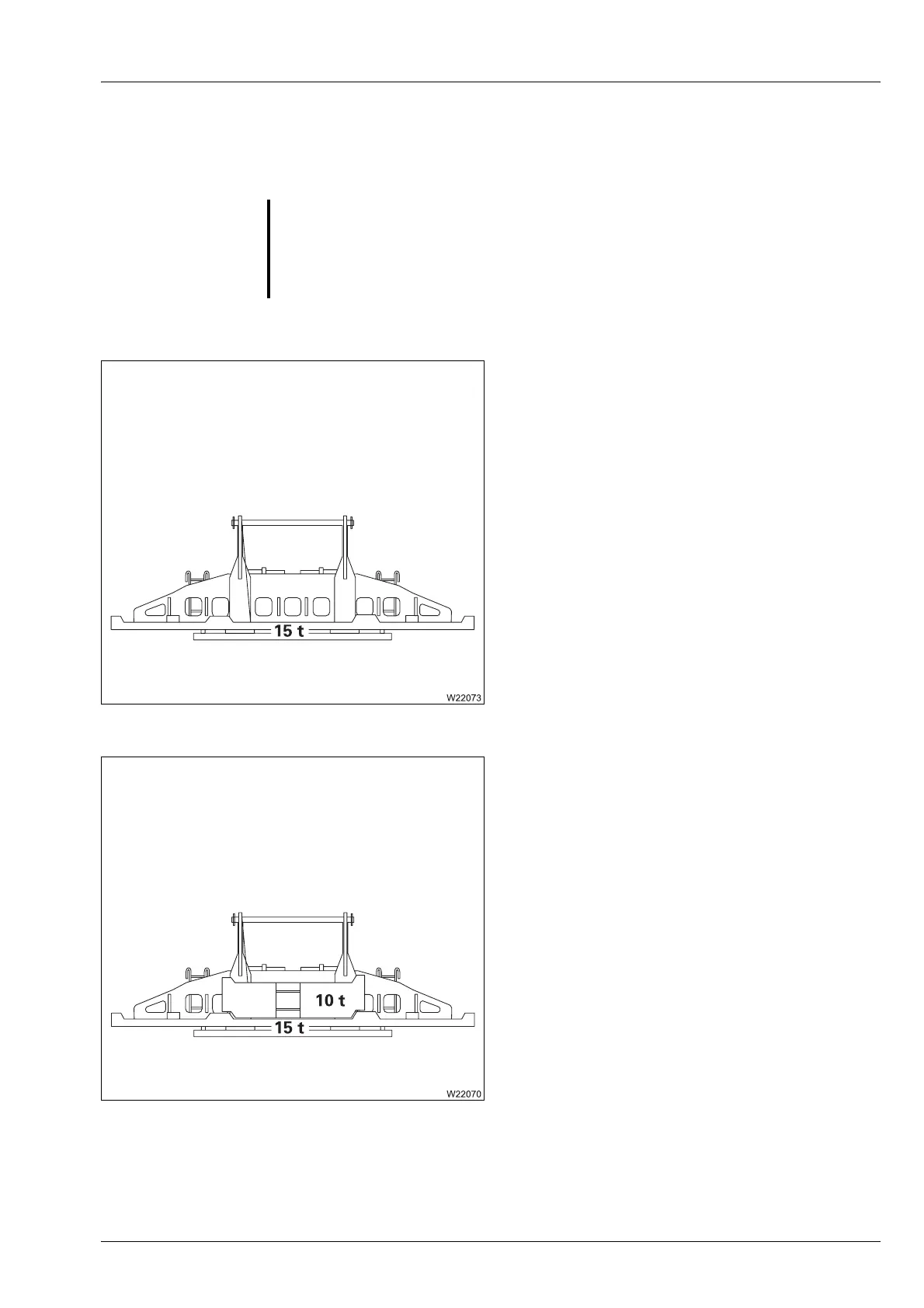

The following counterweight combinations can be combined on the coun-
terweight platform.
15 t (33 069 lbs)
– 15 t base plate
25 t (55 116 lbs)
– 15 t base plate
– One 10 t block
s
G
Risk of accident due to an incorrect counterweight mass
Only combine the counterweights in such a manner that the counterweight
mass corresponds to the specifications in this section and in the
Lifting
capacity table
. Other combinations are not permitted.
