Rigging work
12.7 Rigging/unrigging the counterweight
12 - 74 3 112 993 en Operating manual GMK 6400
12.07.2013

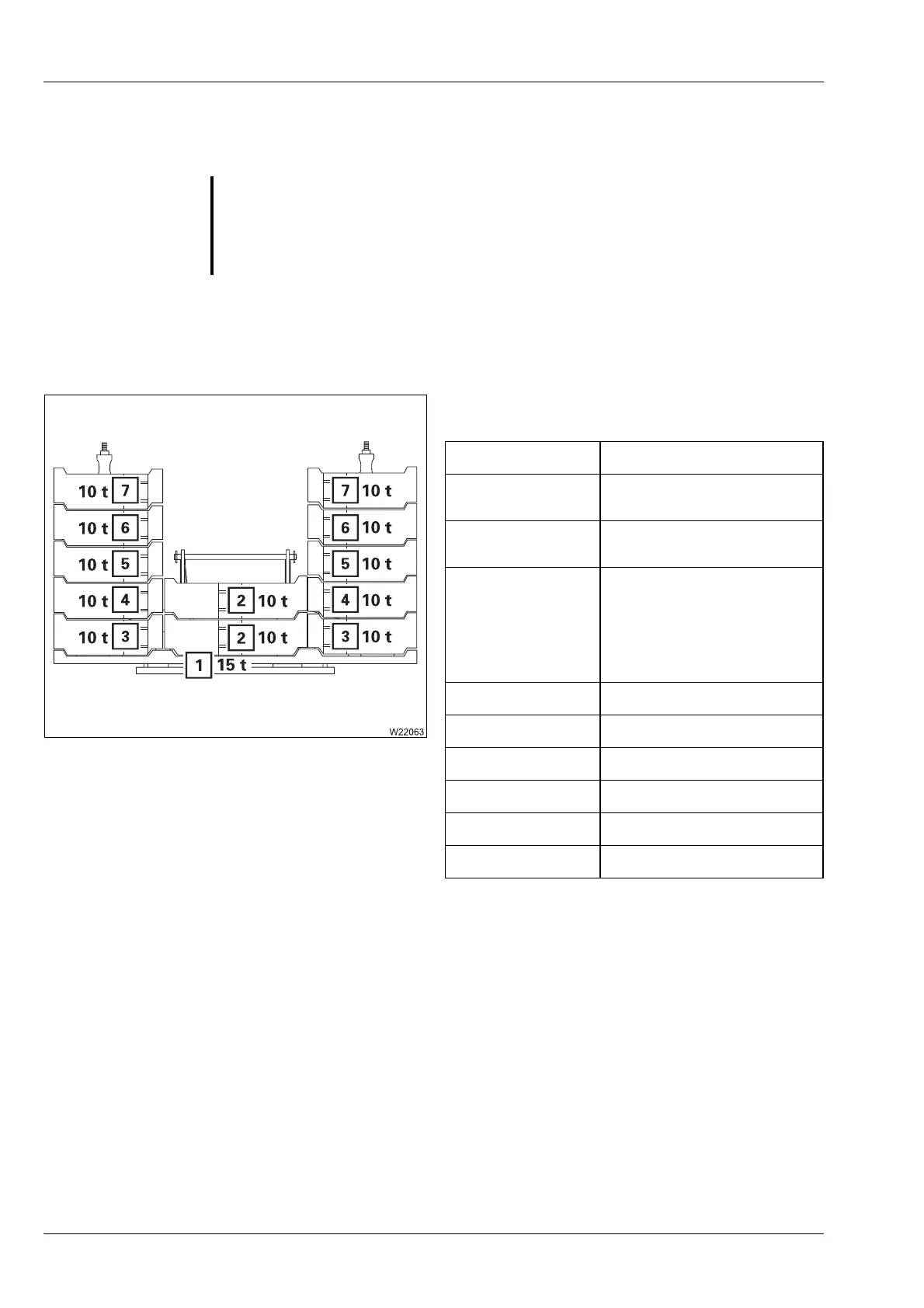

Setting down 10 t
sections/blocks
version B
H
All the sections on the left-hand and right-hand sides are interchangeable.
• Always place the 10 t blocks alternately on
the left and right sides.
1)
Additional equipment
2)
à Securing 10 t blocks, p. 12 - 80
S
Risk of overturning if counterweight rigging sequence is incorrect
When rigging, always place/raise the 10 t blocks alternately on the left and
right sides. Otherwise the truck crane will be overloaded at one side or the
counterweight may fall from the carrier.
Counterweight Counterweight section
15 t
1
25 t
1 and 1 x 2
35 t
1 and 2
or
1 and 3
45 t 1 and 1 x 2 and 3
55 t 1 to 3
75 t 1 to 4
95 t 1 to 5
115 t
2)
1 to 6
135 t
1), 2)
1 to 7
