Rigging work
12.9 Rigging work on the main boom
12 - 124 3 112 993 en Operating manual GMK 6400
12.07.2013

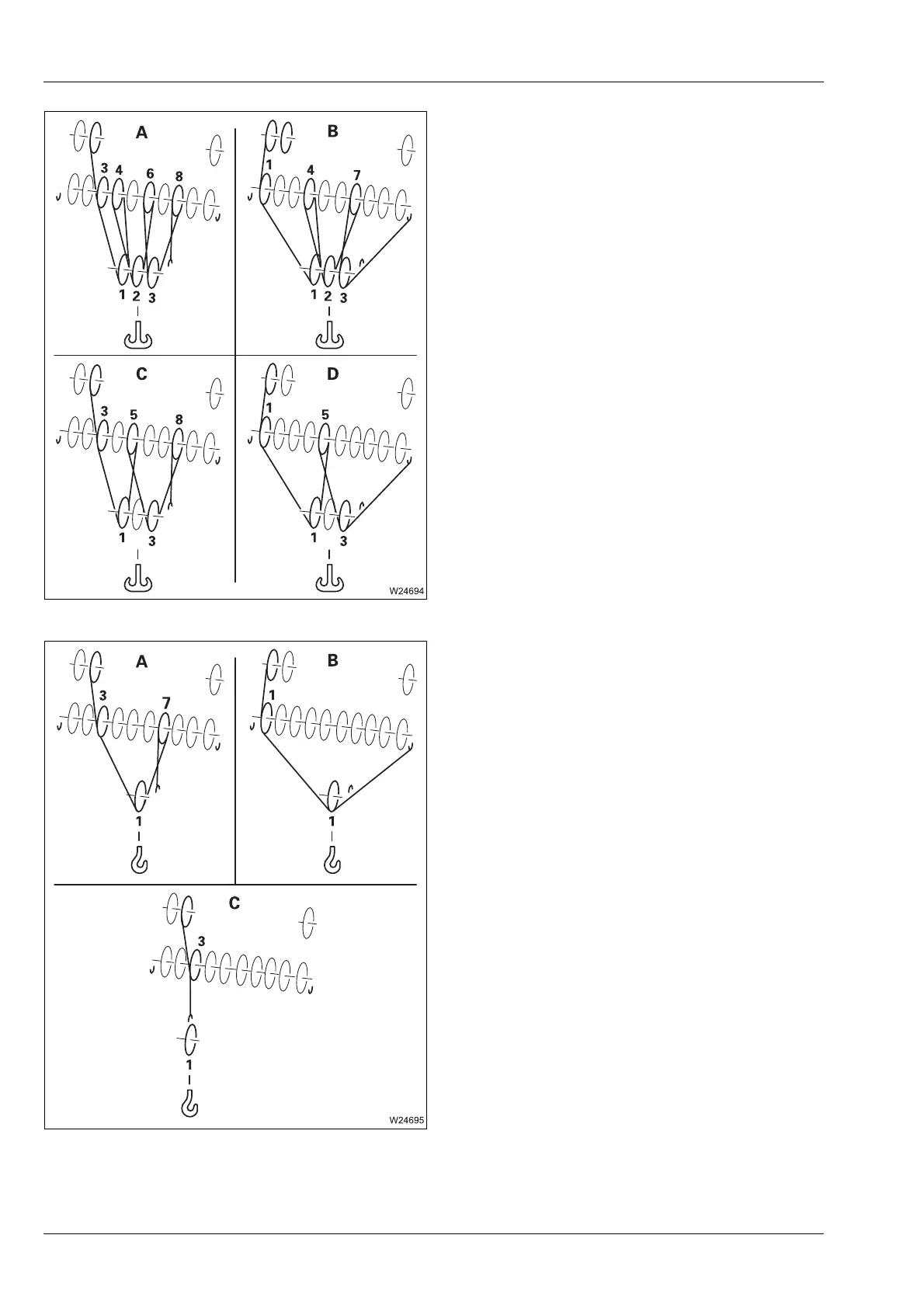

3 sheave hook block
Maximum lifting capacity of the hook block:
100 t (220 462 lbs)
Max. lifting capacity with the GMK 6400
1 sheave hook block
Maximum lifting capacity of the hook block:
40 t (88 185 lbs)
Max. lifting capacity with the GMK 6400
Reeving Maximum lifting capacity
A 7x 78.5 t (173 000 lbs)
B 6x 67.3 t (148 300 lbs)
C 5x 56.1 t (123 600 lbs)
D 4x 44.9 t (98 900 lbs)
Reeving Maximum lifting capacity
A 3x 33.6 t (74 000 lbs)
B 2x 22.4 t (49 300 lbs)
C 1x 11.2 t (24 700 lbs)
