Rigging work
12.9 Rigging work on the main boom
Operating manual GMK 6400 3 112 993 en 12 - 123
12.07.2013

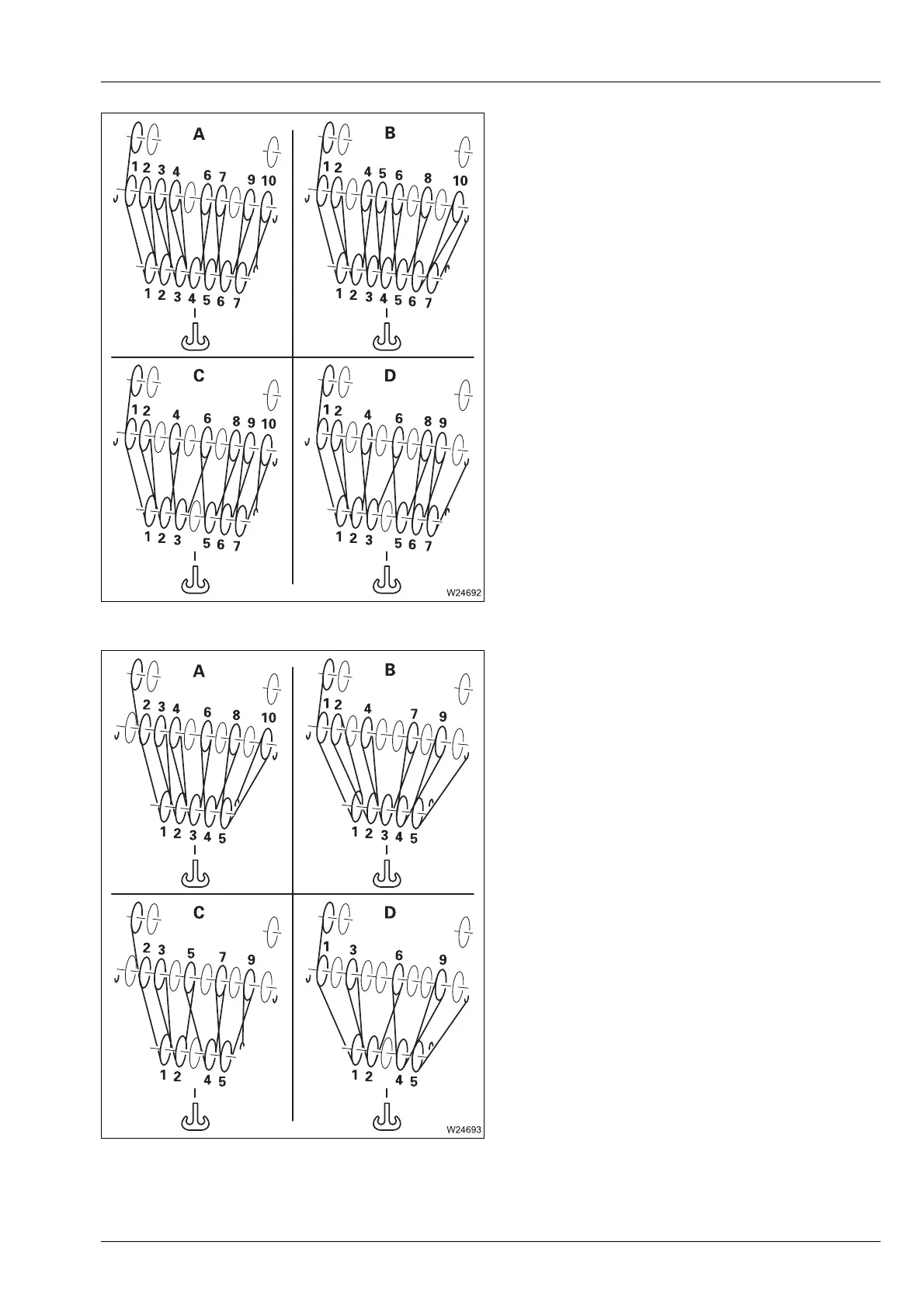

7 sheave hook block
Maximum lifting capacity of the hook block:
200 t (440 900 lbs)
Max. lifting capacity with the GMK 6400
5 sheave hook block
Maximum lifting capacity of the hook block:
160 t (352 740 lbs)
Max. lifting capacity with the GMK 6400
s
Reeving Maximum lifting capacity
A 15x 168.2 t (398 600 lbs)
B 14x 157.0 t (346 100 lbs)
C 13x 145.8 t (321 400 lbs)
D 12x 134.6 t (296 700 lbs)
Reeving Maximum lifting capacity
A 11x 123.3 t (271 800 lbs)
B 10x 112.1 t (247 100 lbs)
C 9x 100.9 t (222 400 lbs)
D 8x 89.7 t (197 700 lbs)
