Rigging work
12.9 Rigging work on the main boom
12 - 122 3 112 993 en Operating manual GMK 6400
12.07.2013
With 10 head
sheaves
11 sheave hook block
Maximum lifting capacity of the hook block:
320 t (705 500 lbs)
Max. lifting capacity with the GMK 6400
In case of additional equipment, the hoist rope
can be reeved 21 times;
à Maximum reeving,
p. 12 - 125.
9 sheave hook block
Maximum lifting capacity of the hook block:
250 t (551 155 lbs)
Max. lifting capacity with the GMK 6400

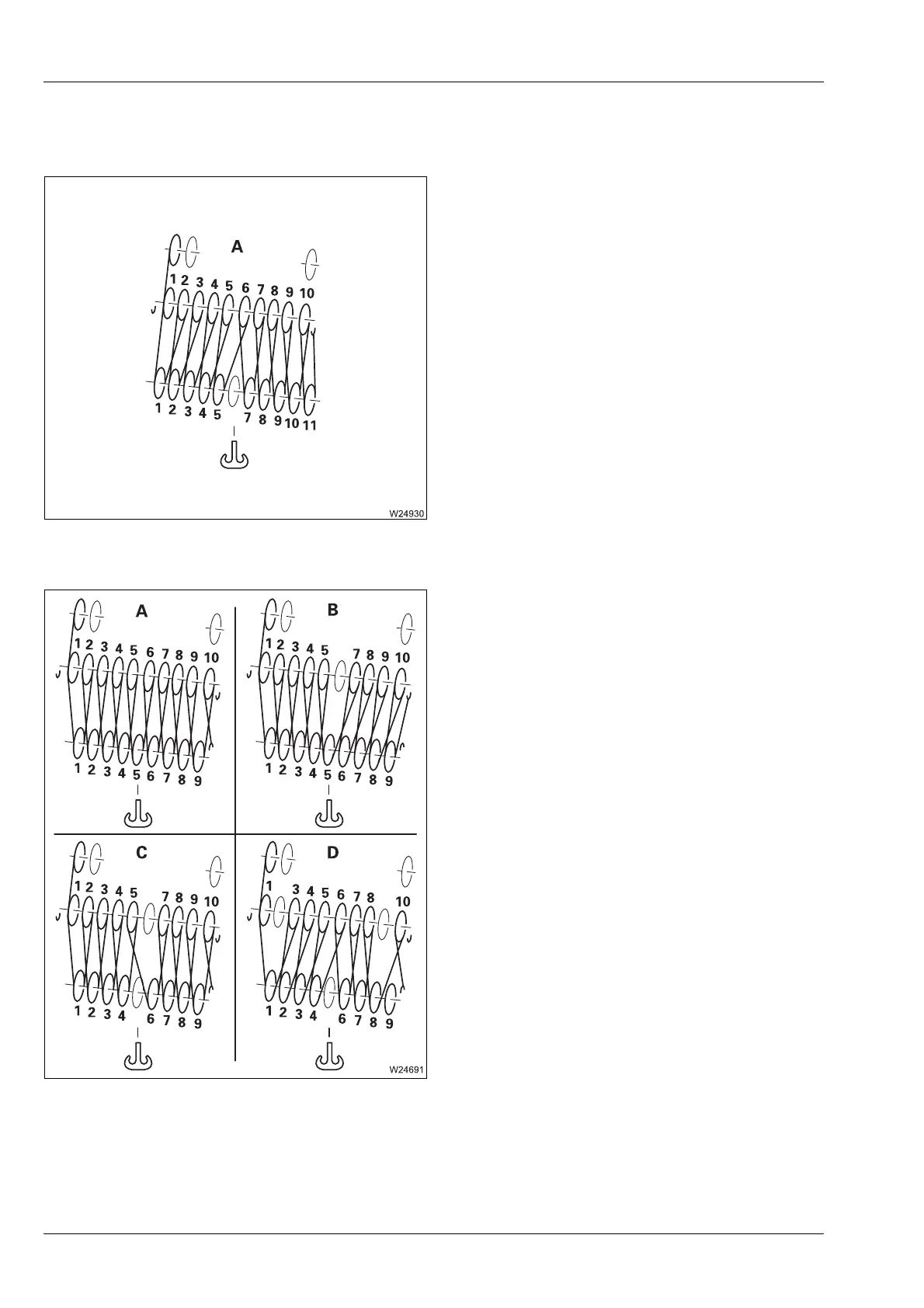

Reeving Maximum lifting capacity
A 20x 224 t (493 000 lbs)
Reeving Maximum lifting capacity
A 19x 213.0 t (469 600 lbs)
B 18x 201.8 t (444 900 lbs)
C 17x 190.6 t (420 200 lbs)
D 16x 179.4 t (395 500 lbs)
