Rigging work
12.9 Rigging work on the main boom
Operating manual GMK 6400 3 112 993 en 12 - 121
12.07.2013
1 sheave hook block
Maximum lifting capacity of the hook block:
40 t (88 185 lbs)
Max. lifting capacity with the GMK 6400
Hook tackle
Maximum lifting capacity of the hook tackle:
16 t (35 274 lbs)
Max. lifting capacity with the GMK 6400

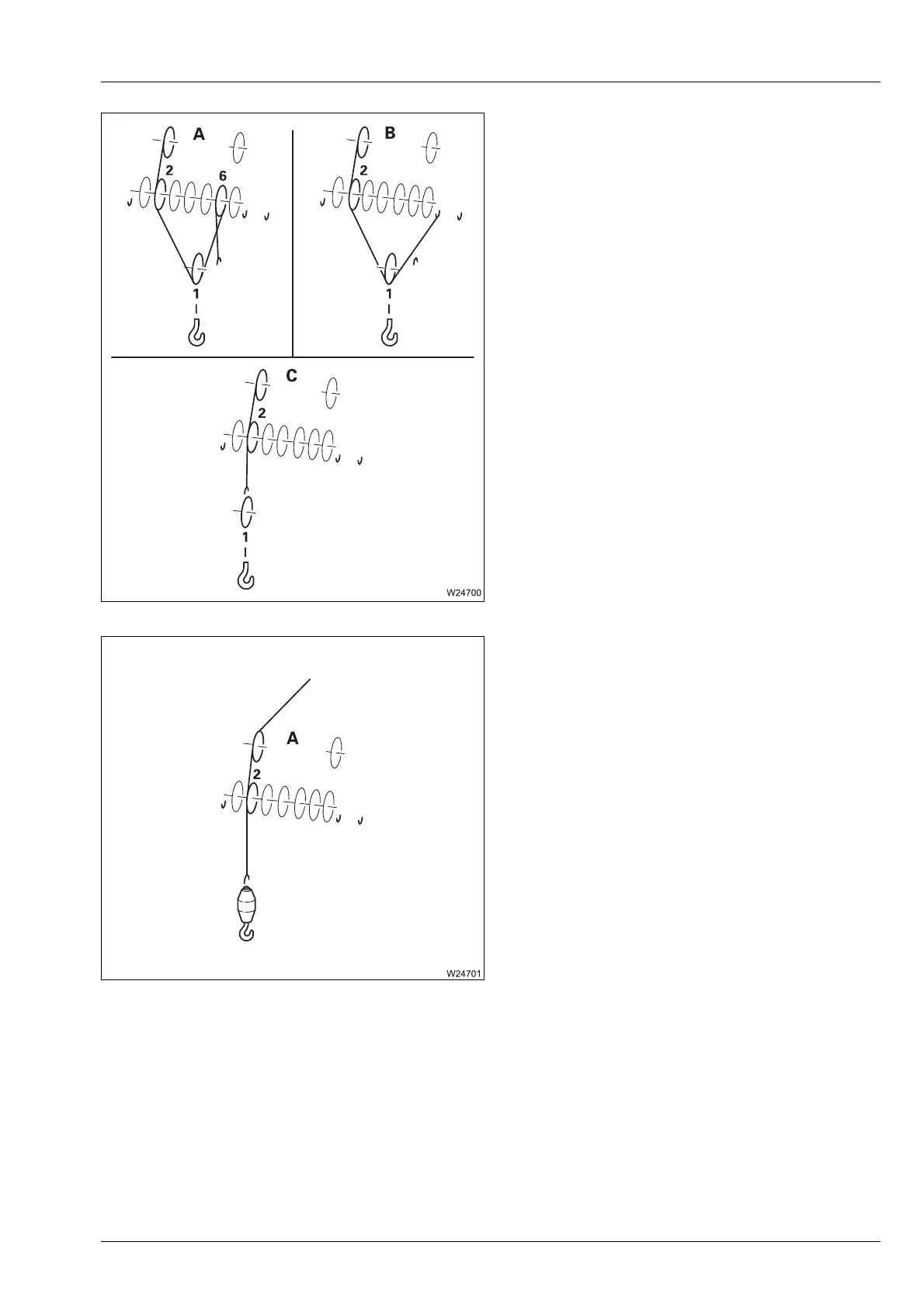

Reeving Maximum lifting capacity
A 3x 33.6 t (74 000 lbs)
B 2x 22.4 t (49 300 lbs)
C 1x 11.2 t (24 700 lbs)
Reeving Maximum lifting capacity
A 1x 11.2 t (24 700 lbs)
