Rigging work
12.9 Rigging work on the main boom
12 - 120 3 112 993 en Operating manual GMK 6400
12.07.2013

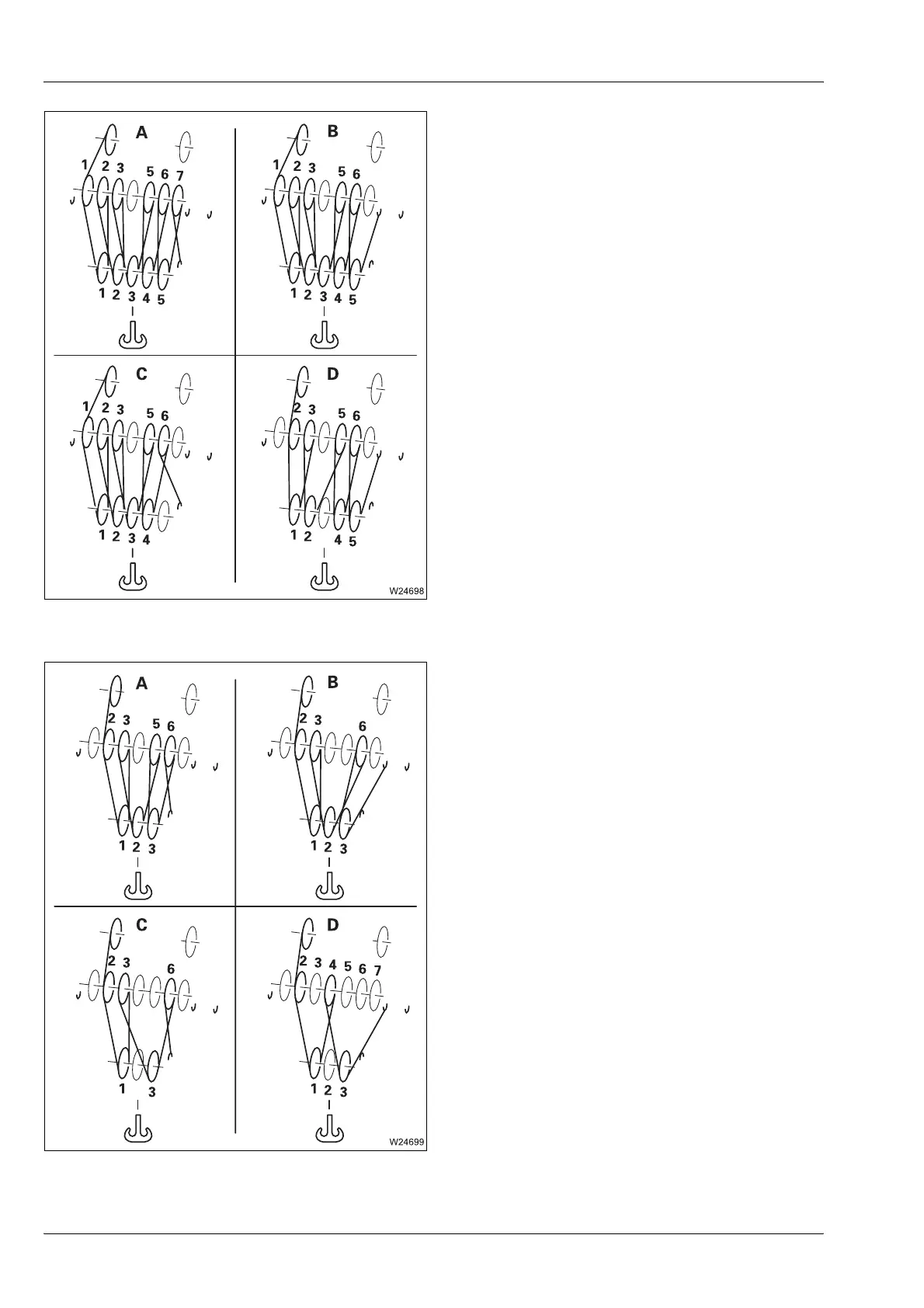

5 sheave hook block
Maximum lifting capacity of the hook block:
160 t (352 740 lbs)
Max. lifting capacity with the GMK 6400
3 sheave hook block
Maximum lifting capacity of the hook block:
100 t (220 462 lbs)
Max. lifting capacity with the GMK 6400
Reeving Maximum lifting capacity
A 11x 123.3 t (271 800 lbs)
B 10x 112.1 t (247 100 lbs)
C 9x 100.9 t (222 400 lbs)
D 8x 89.7 t (197 700 lbs)
Reeving Maximum lifting capacity
A 7x 78.5 t (173 000 lbs)
B 6x 67.3 t (148 300 lbs)
C 5x 56.1 t (123 600 lbs)
D 4x 44.9 t (98 900 lbs)
