Manitowoc GROVE GMK 6400 User Manual

Rigging work
12.9 Rigging work on the main boom
12 - 130 3 112 993 en Operating manual GMK 6400
12.07.2013

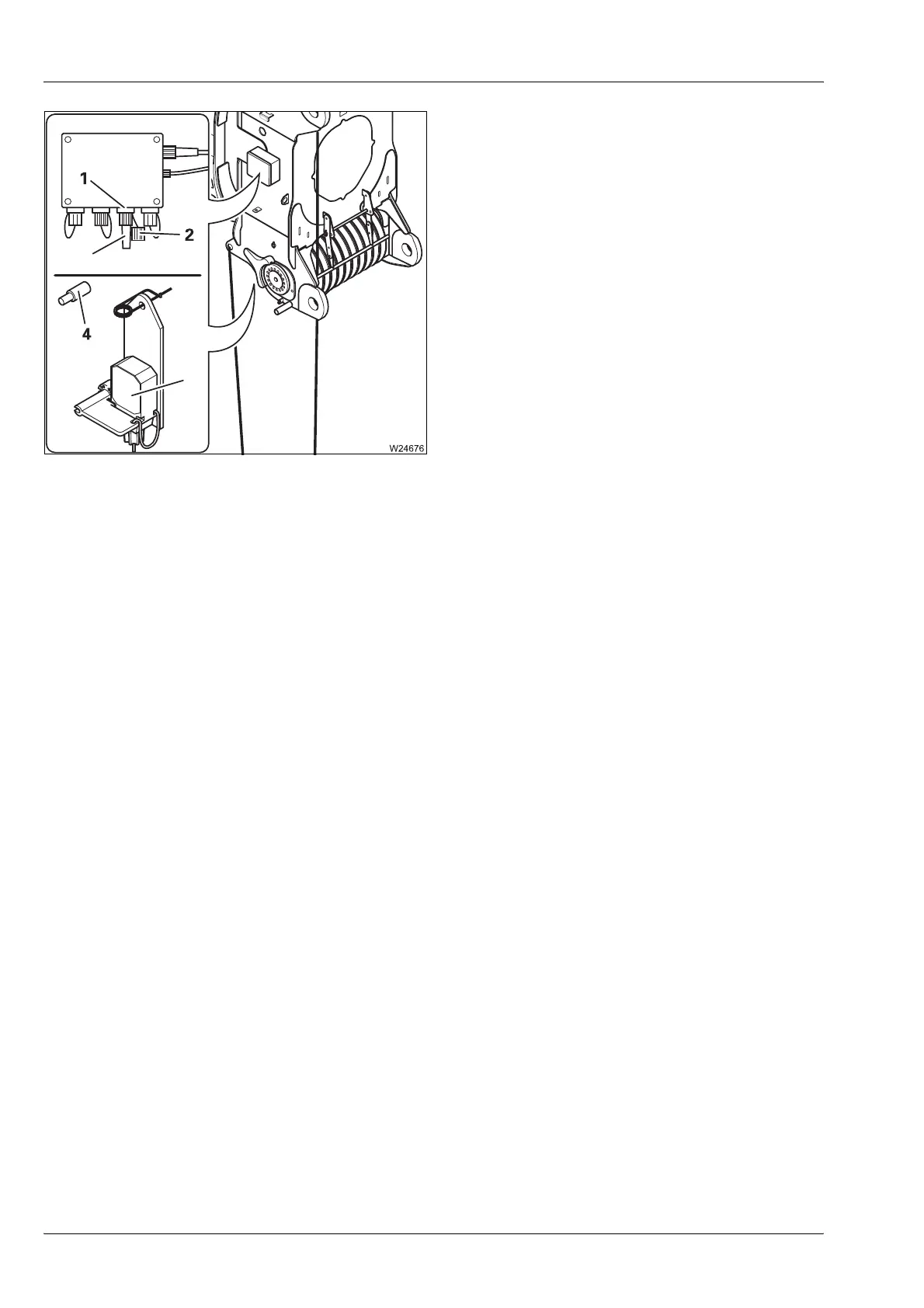

Removing the right lifting limit switch
• Pull the plug from the socket (1).
• Remove the bridging plug (3) from the
dummy socket (2) and plug it into the socket
(1).
• Remove the lifting limit switch (5) from the
bracket (4).
• Fasten the retaining pin to the lifting limit
switch.
3
5
