Basic Operations
5
5
6
Selecting Tools

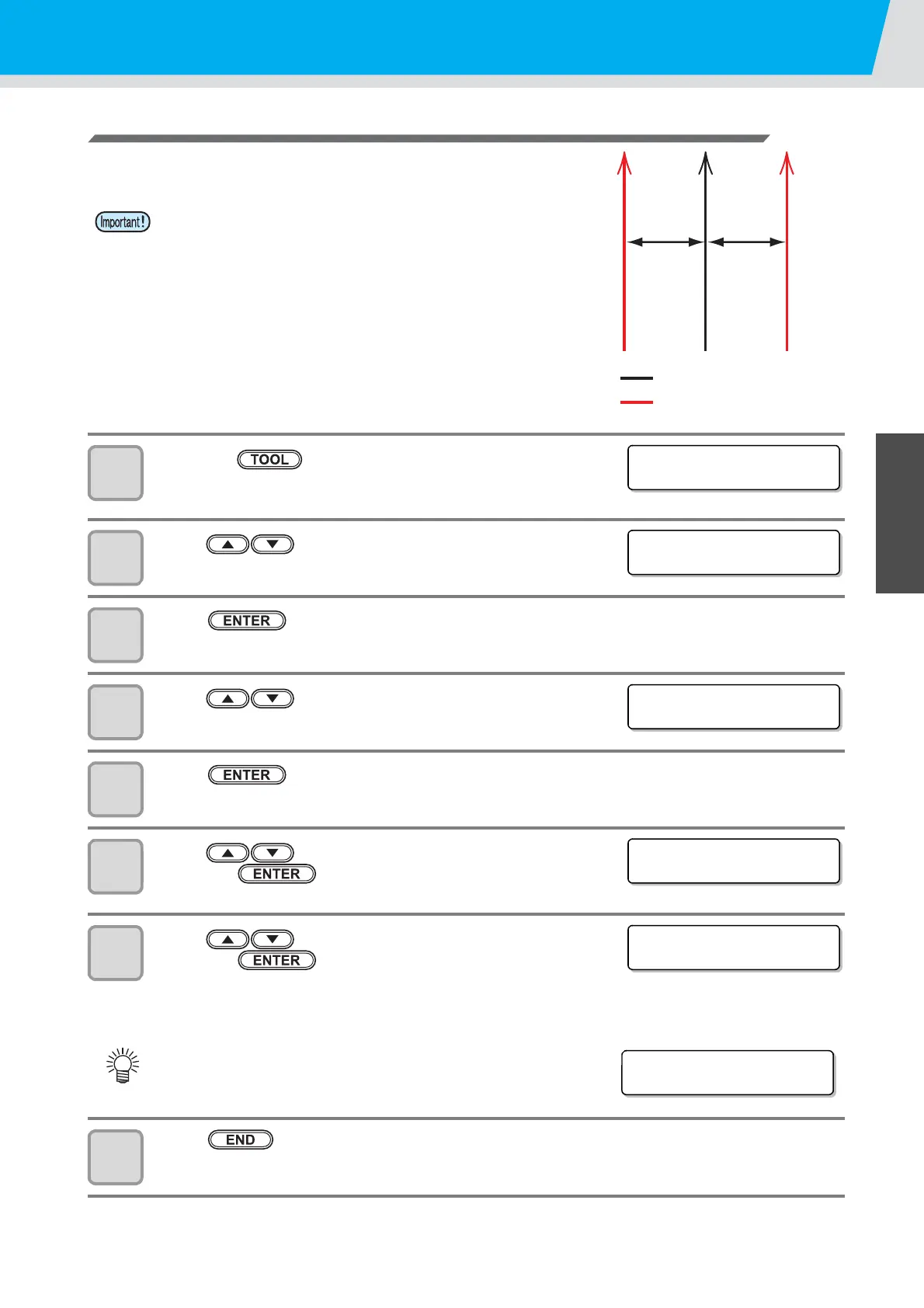

The Setting of The W Roller
Center the normal ruled line and draw 2 ruled lines to the offset
position.
1
Press the key in LOCAL mode.
2
Press key and select B Unit.
3
Press key.
4
Press key and select Roller 1 to 3.
5
Press key.
6
Press key to display the [W ROLLER], and
press the key.
7
Press key to set the setting value, and
press the key.
• If select “OFF” to the set value, it does not use the W roller
function.
• Set values: OFF, 0.1 ~ 1.0mm
8
Press key several times and finish the setting
• Does not draw the normal ruled line.
• If the W roller is set other than off, (w) will be displayed after the tool
name.
Offset
0.1~1.0mm
Offset
0.1~1.0mm
: Normal ruled
: Draw 2 ruled lines
when W roller is “ON”
<TOOL SELECT>
B:REC.CUTTER1
<CUT COND I T I ON>
W- ROL L ER : OF F
<CUT COND I T I ON>
W-ROLLER :0.5mm
