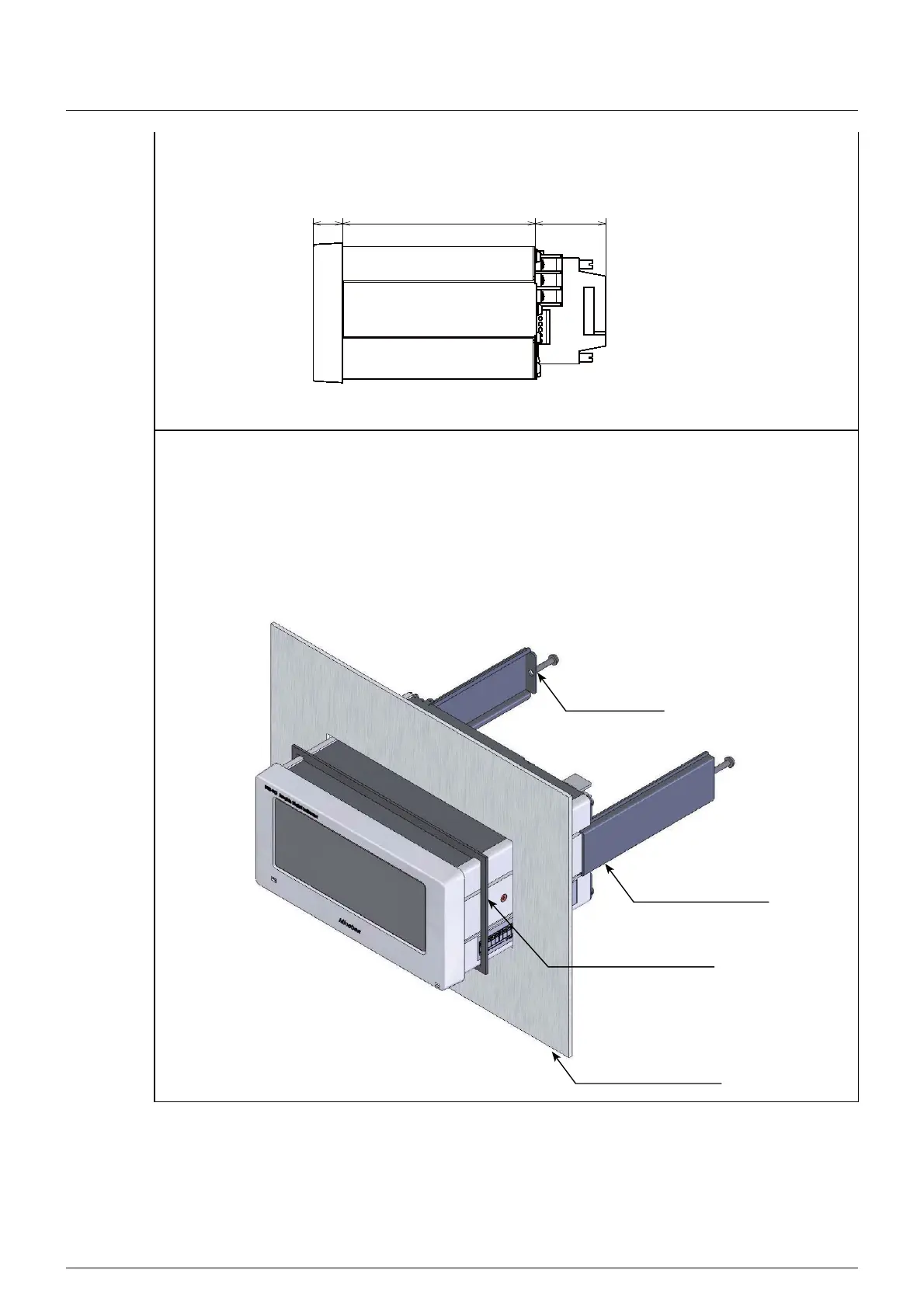

The following is the side dimensions when the BCD output is connected. (The other
connectors attached external control input/output has the same dimensions as those of the
BCD output. )
If you use CSD-912B where it is splashed with drops of water or covered with
dusts, apply the attached gasket for panel mount between the control board
(cabinet) and the body.
By applying the panel mount gasket, the front panel section of CSD-912B becomes
dustproof and waterproof structure equivalent to IP65 (International Protection Code).
Carefully check the direction of the panel mount gasket not to install it upside-down. Install
the gasket in a right position and make sure that it is not twisted.
Screw (M4×12)
Panel mounting metal
Panel mount gasket
(dustproof/waterproof)
Control board (Cabinet)
131.5 (48)
Unit: mm
20
