Kaleido-X
User’s Manual

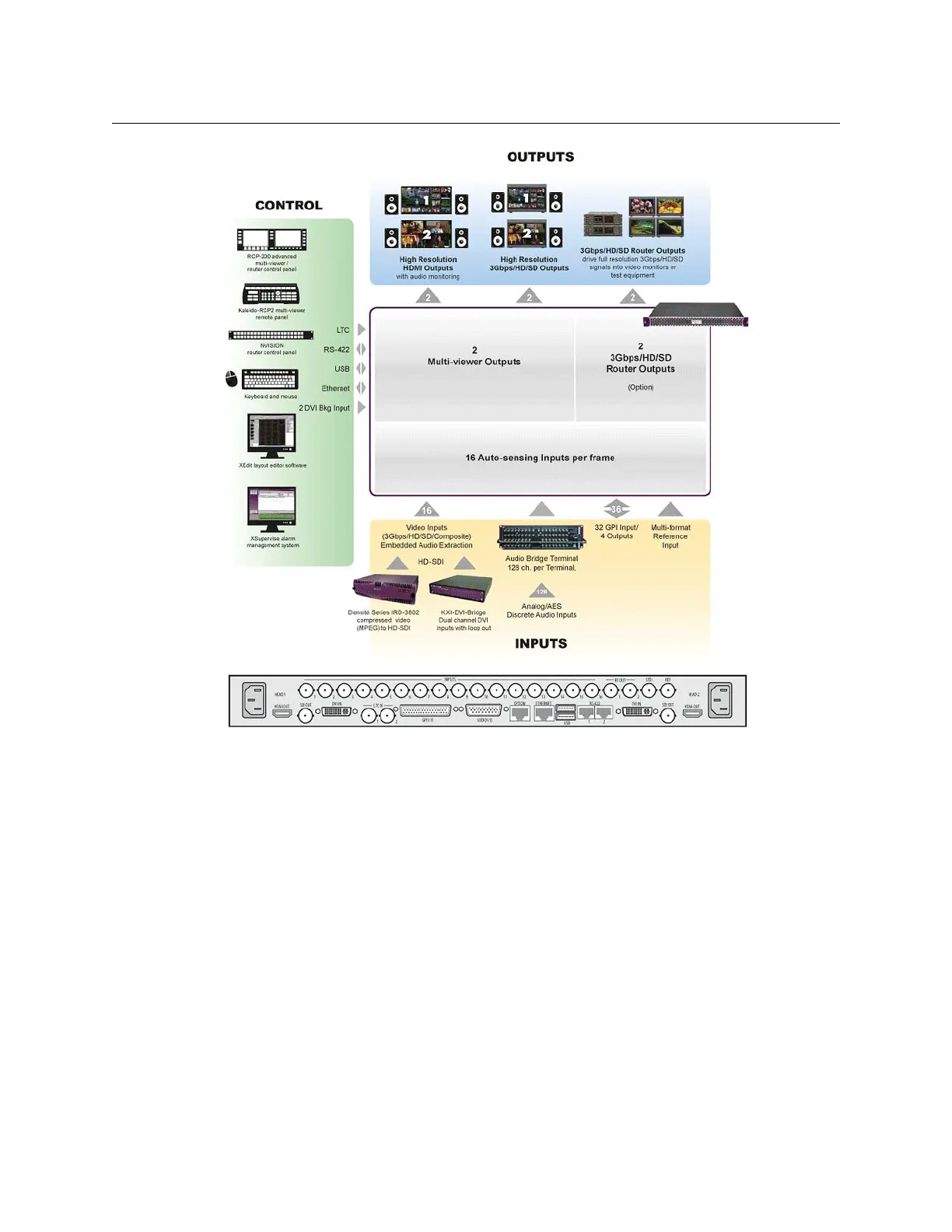

Kaleido-X16-D system overview
The 1RU Kaleido-X16 is ideal for smaller monitoring facilities, such as call letter television
station master control rooms, mobile trucks and production fly cases, as well as community
television. The Kaleido-X16’s super silent design is highly appreciated for use within studios
and control rooms.
Kaleido-X16 provides a subset of the features of the Kaleido-X (4RU) and (7RU) models:
• 1RU non-modular frame
• 16 auto-sensing 3Gbps/HD/SD/Analog video inputs, one or two independent HDMI
outputs
• Two 3Gbps/HD/SD router outputs
• 3Gbps with 3D support (SMPTE ST 425-1 Level A & B)
• Expansion through combination with upstream router
• 4 analog channel, 2 digital channel audio monitoring
• One or two HD-SDI monitoring outputs with support of 3Gbps signals
• DVI and compressed (MPEG) video accepted with optional interfaces
