Mitel 430 - Cabling Interfaces; Port Addressing

Installation
105
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016

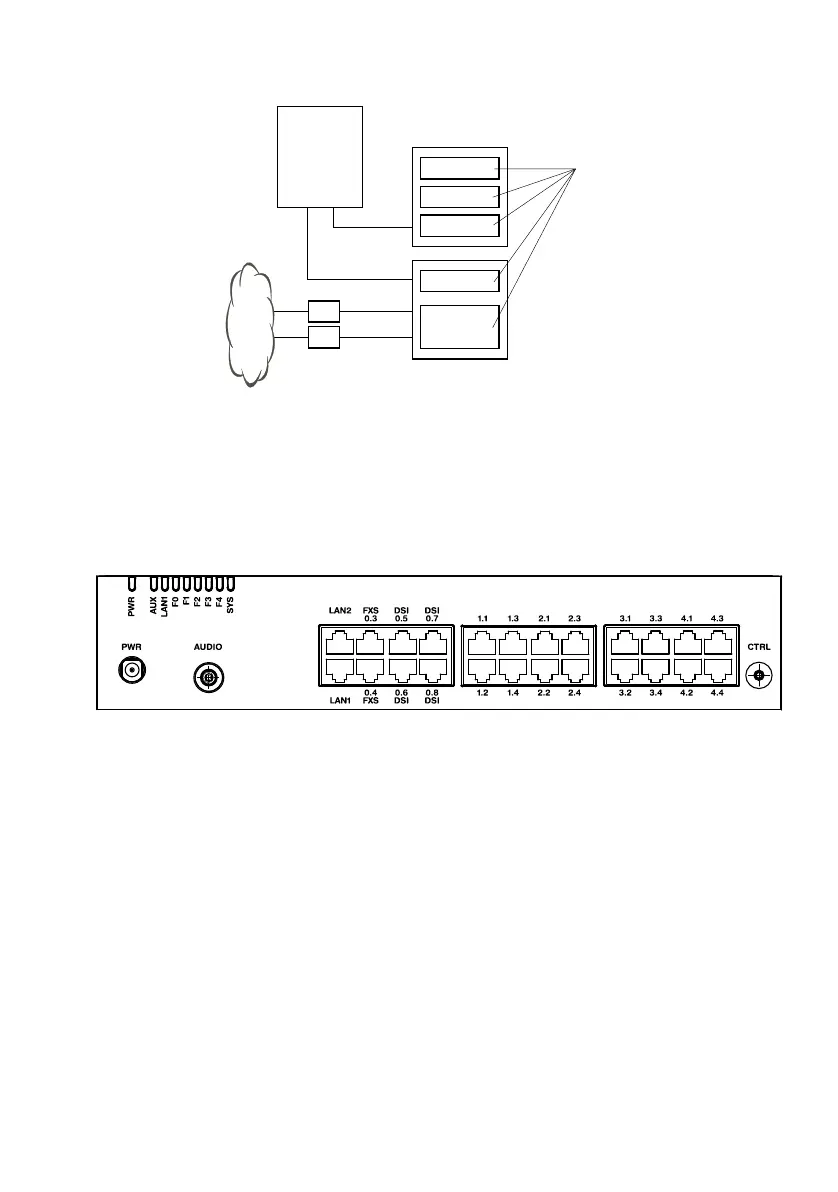

Fig. 29 Connecting to a UBC via wiring centre (example)
4. 7 Cabling interfaces
All the interfaces are routed to the front panel and are therefore accessible without
opening the communication server.
Fig. 30 Interfaces on the front panel with port designation (Mitel 430)
4. 7. 1 Port addressing
A port address is always of the type x.y. x is the number of the card slot, and y, the port
number.
The slot numbering begins with 0 (=mainboard) and ends with 2 (for Mitel 415) or 4 (for
Mitel 430).
With BRI-S interface and DSI interface addresses, the terminal selection digit (TSD) is
relevant, in addition to the slot and port numbers. This is always -1 in analogue termi-
nal interfaces.
ED
V
NT1
NT1
Communica-
tion server
Public
exchange
Phone
Phone
Exchange side
User side
Patch panel
User
