This chapter informs you about the systematic designation system and provides you
with an equipment overview of the communication server with cards, modules and
optional components. It also provides the technical data for interfaces, communica-
tion server and system terminals as well as a table overview of the digit key assign-
ments and function keys for the system phones. Finally here is a list of functions and
products no longer supported, licence information on third-party software prod-
ucts, and a table summary of related documents and online help.
7. 1 Systematic designation system

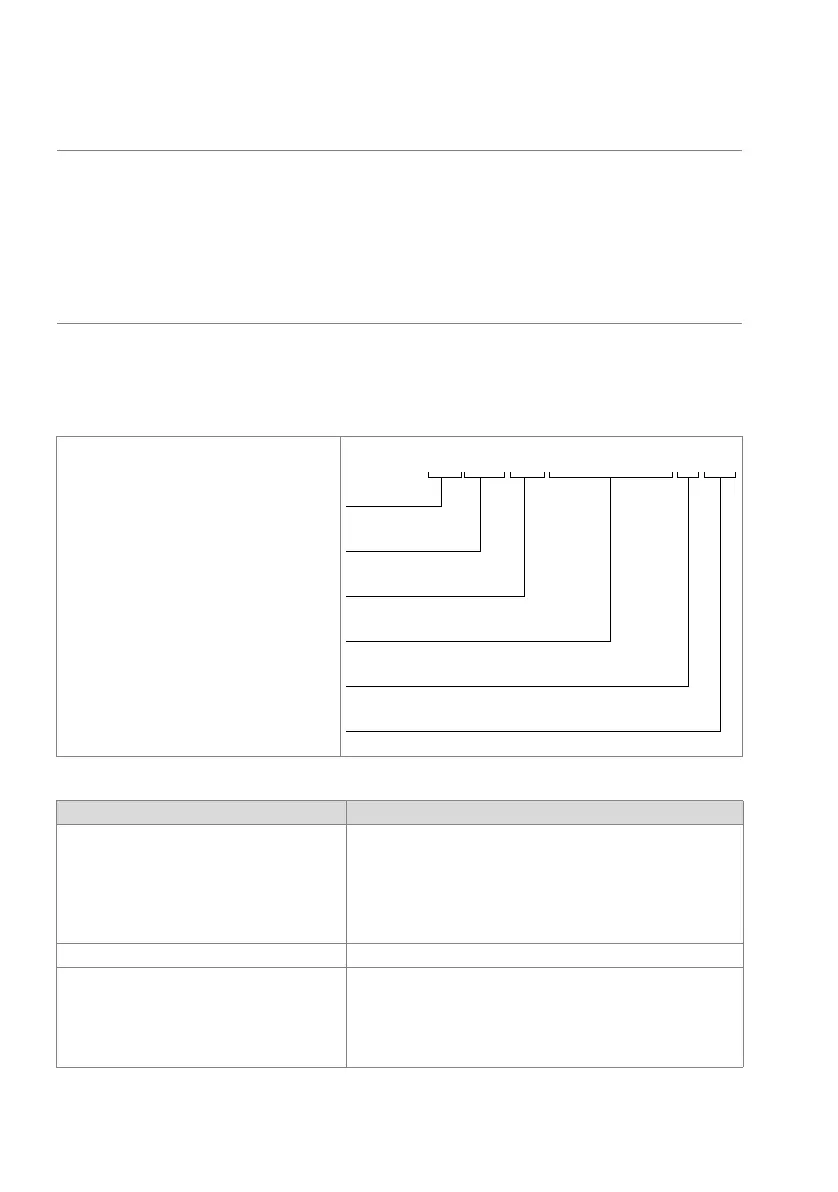

Tab. 113 PCB Designation
Tab. 114 Explanation of the PCB Designation
PCB type (three-digit)
Project number (three-digit)
Country code and sales channel
ID
Colour code on terminals
Generation and version
Part of the PCB designation Remarks and examples
PCB type (three-digit) LPB = Printed circuit board fitted
KAB = Cable fitted
PBX = Complete system
SEV = Set packed
EGV = Terminal packed
MOV = Module/card packed
Project number (three-digit) 957 (System Mitel 415/430)
Country code and sales channel
(one to three-digit, with full stops)
Two-digit country code as per ISO 3166,
Sales channel (1...9) for various sales channels.
Example:
EXP = Export channels (not country-specific)
Space = No country code
