4. 7. 2. 2 Primary rate interface PRI
With the appropriate interface cards and Wiring Adapters, PRI network interfaces can
be made available at RJ45 sockets 1.1, 2.1, 3.1 and 4.1 (Mitel 415 only 1.1, 2.1). For
test purposes the PRI interface is also routed in parallel to ports x.2. The possible RJ45
sockets are highlighted in colour in the figure below.

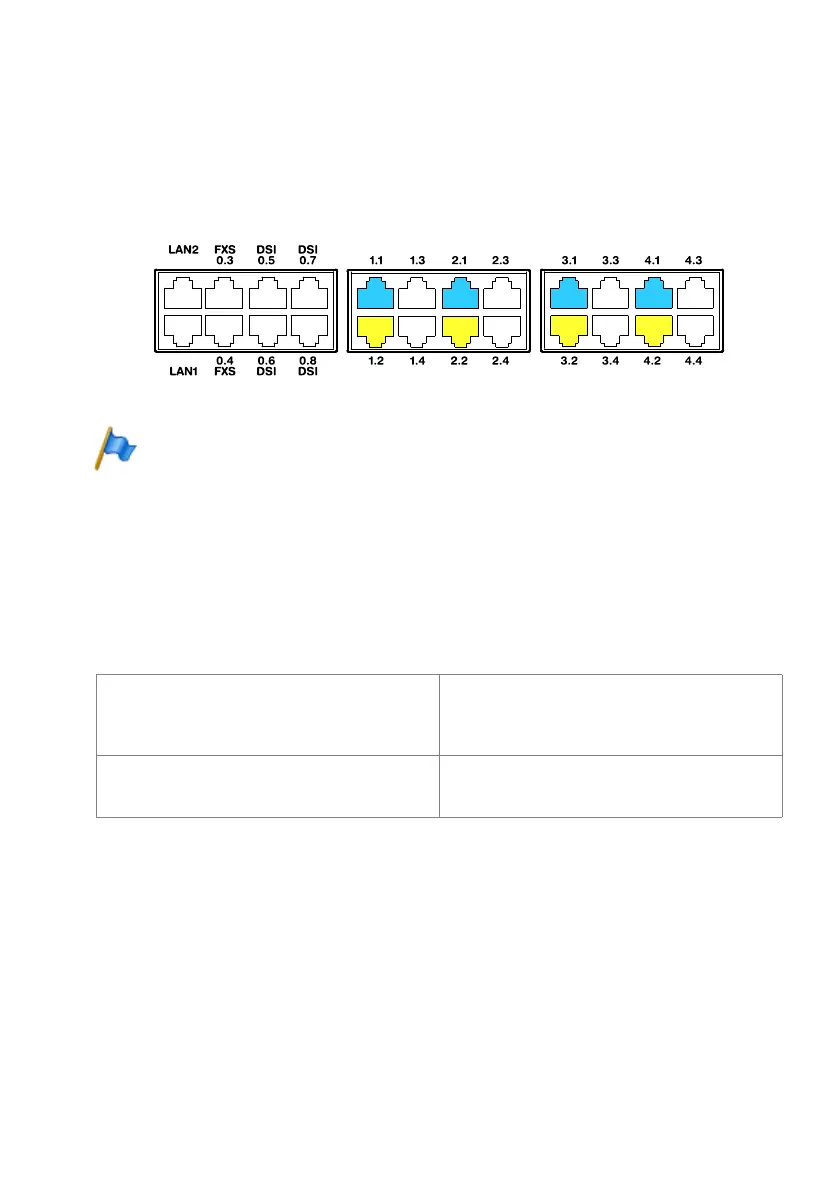

Fig. 35 Connection possibilities for PRI network interfaces
Notes
– In normal operation the x.2 test socket must not be connected; otherwise faults may occur.
– Circuit type as per EN/IEC 60950: SELV
Cable Requirements
The connection to NT1 (Network Termination) is implemented using commercially
available screened cables with 8-pin RJ45 connectors at both ends, e.g. S-FTP 4P,
PVC, Cat. 5e.
Tab. 43 Cable requirements for the primary rate interface)
Core pairs × cores
Stranded
Wire diameter, core
Screening
2
× 2 (short distances also 1 × 4)
yes
0.4...0.6 mm
yes
Characteristic impedance
Wave attenuation
Near/crosstalk attenuation
90 to 130
Ω (1 MHz)
< 6 dB/km (100 kHz), < 26 dB/km (1 MHz)
> 54 dB/100 m (1 kHz to 1 MHz)
