Installation
149
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016
4. 8. 3 Standard SIP phones and standard SIP terminals
For information on installation, powering and connection, please refer to the installation
instructions of the corresponding phones and terminals. Information on how to register
Mitel or third-party standard SIP phones and standard SIP terminals as internal users
in MiVoice Office 400 is given in WebAdmin.
4. 8. 4 Mobile/external phones
The integration of mobile/external phones in the MiVoice Office 400 communication
system is described in the System Manual "System Functions and Features".
4. 8. 5 OIP and other applications
Mitel Open Interfaces Platform (OIP) release 8.6 and later is also available as OIP Vir-
tual Appliance and can be installed on the same server as the Virtual Appliance com-
munication server. The operating requirements and installation instructions for the OIP
applications MiVoice 1560 PC Operator and Mitel OfficeSuite are described in the
"Mitel Open Interfaces Platform" System Manual.
4. 8. 6 Digital system phones
4. 8. 6. 1 General information
Accesses
The connections on the underside of the system phones are identified by the symbols.
The meaning of the symbols is described in the corresponding operating instructions.
DSI terminal interface

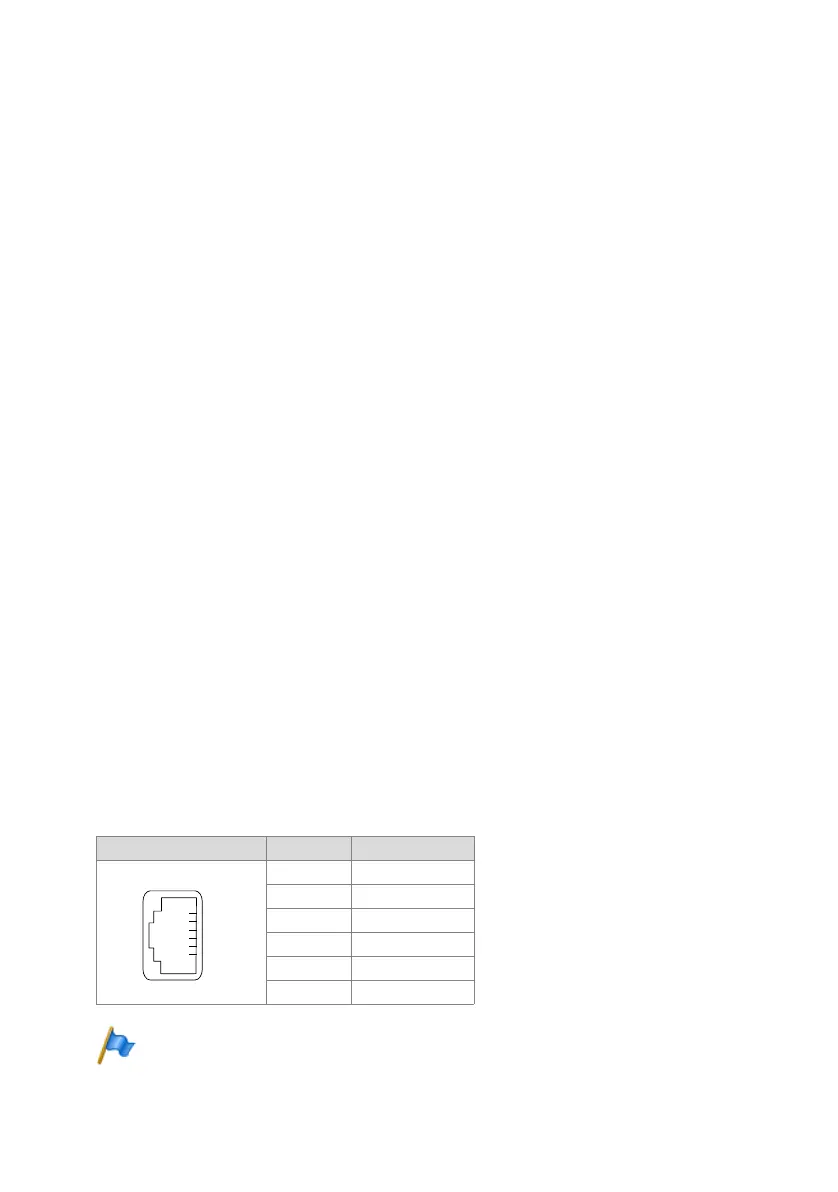

Tab. 79 DSI interface on the phone
Note:
The total length of the cables from the communication server to the system phone must not be
less than 10 m.
RJ45 socket Pin Signal
1—
2—
3b
4a
5—
6—
