Installation
96
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016
Please also note the following points:
• The mains connector acts as a disconnecting device and must be positioned so that
it is easily accessible.
• Only ever use the supplied power supply unit.

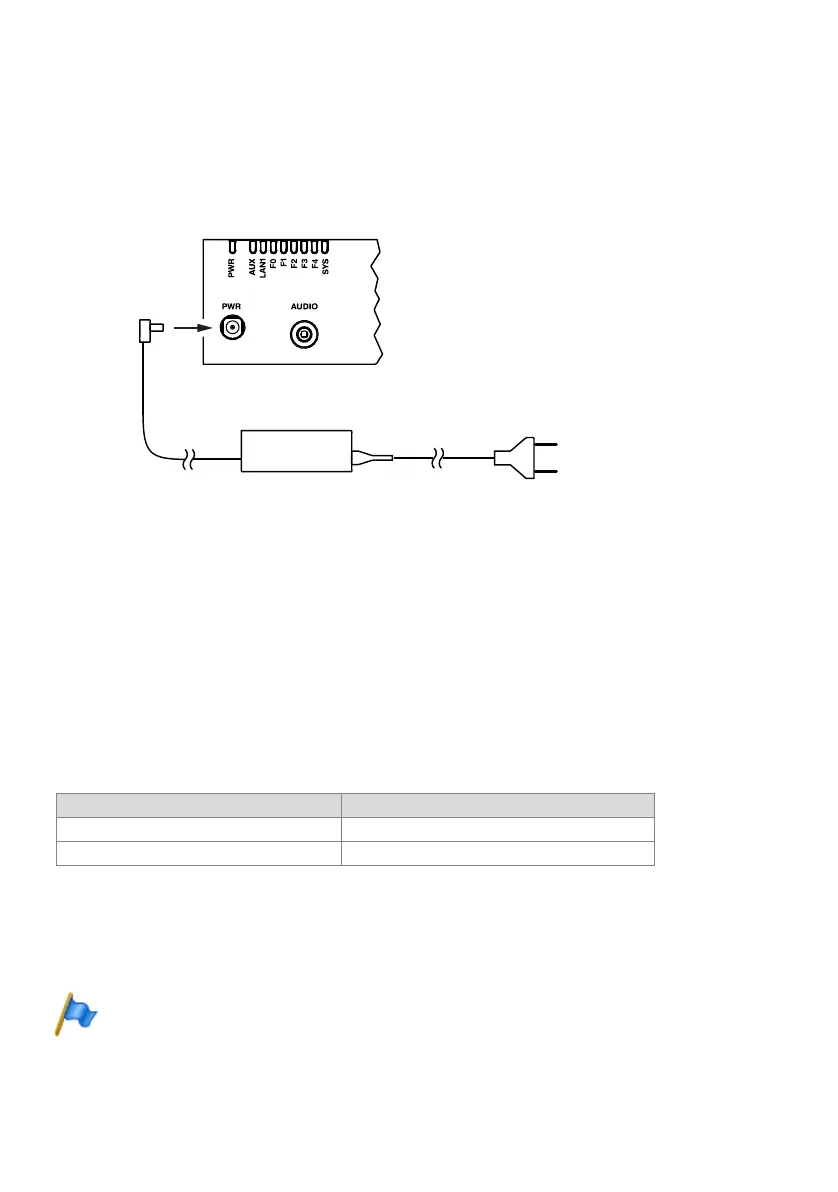

Fig. 22 Powering the communication server from the mains
4. 4. 2 Uninterruptible power supply (UPS)
The use of an external uninterruptible power supply (UPS) guarantees operation even
in the event of a mains outage.
The UPS battery capacity is rated according to the communication server’s primary
power requirements and the required bridging time. The table below shows the maxi-
mum power requirements of the communication server in its maximum configuration
and maximum traffic volume.
Tab. 35 Maximum power requirements of the communication server
The battery capacity required [Ah] can be calculated using the battery voltage and the
maximum bridging time. It is important to note that the battery must never be allowed to
become completely discharged and that in typical conditions only approx. 60% of the
maximum power requirements is needed.
Note
The uninterrupted operation of the communication server is ensured if the UPS takes over the
power supply within 20ms of the mains outage.
Communication server Maximum power requirements
Mitel 415 100 VA
Mitel 430 150 VA
1.8 m
1.5 m
Power supply
Mains power
