Mitel 430 - Ethernet Interfaces

Installation
144
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016

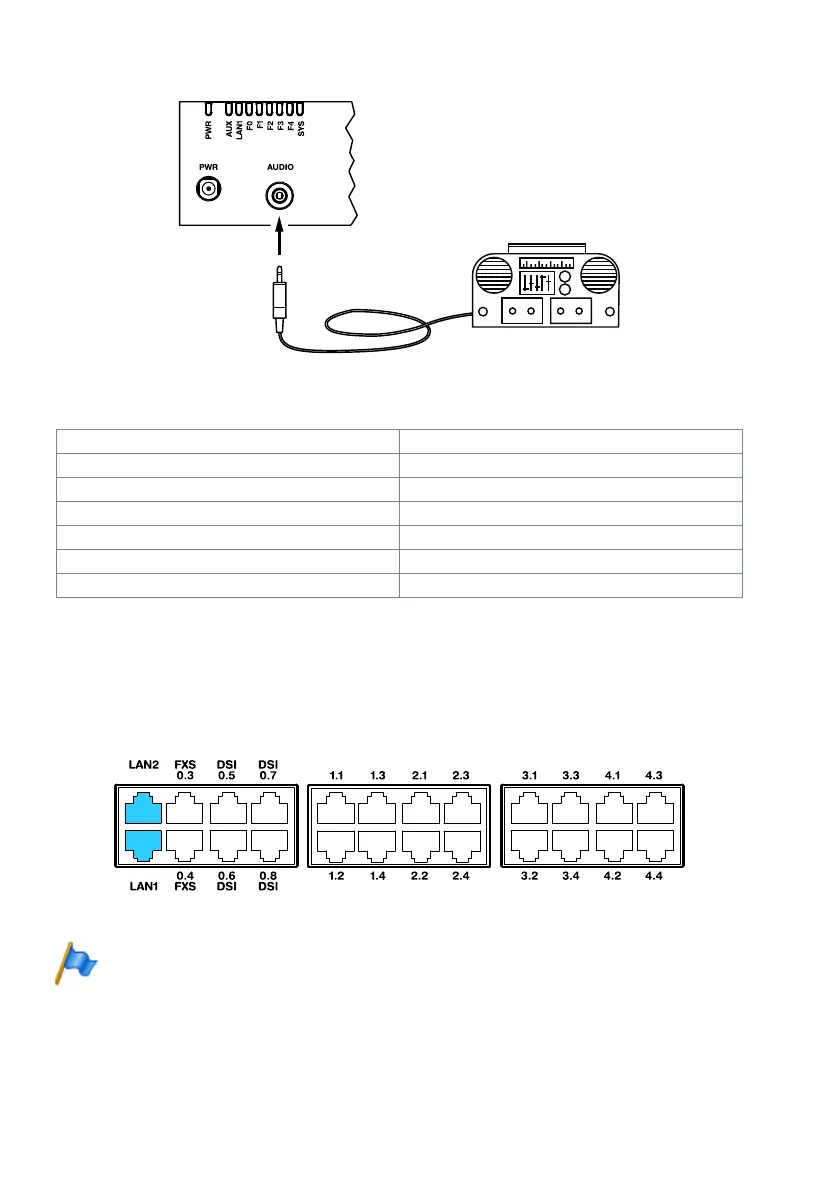

Fig. 66 Audio interface
Tab. 72 Technical data of the audio interface
4. 7. 7 Ethernet interfaces
The Mitel 415/430 communication servers have a 10/100BaseT 2-port LAN switch.
The Ethernet interfaces are permanently routed to the front panel and labelled accord-
ingly. The RJ45 sockets are highlighted in colour in the figure below.
Fig. 67 Connection possibilities for Ethernet interfaces
Note
Circuit type as per EN/IEC 60950: SELV
Input impedance approx. 15 k Ω
Input level 0.1…5 V (configurable in 8 levels)
Input circuit asymmetrical
Output resistance audio source < 1 k
Ω
Installation cable NF cable screened (required for low levels)
Socket 3.5 mm stereo jack
Circuit type as per EN/IEC 60950: SELV
