Mitel 430 - Route

Installation
113
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016

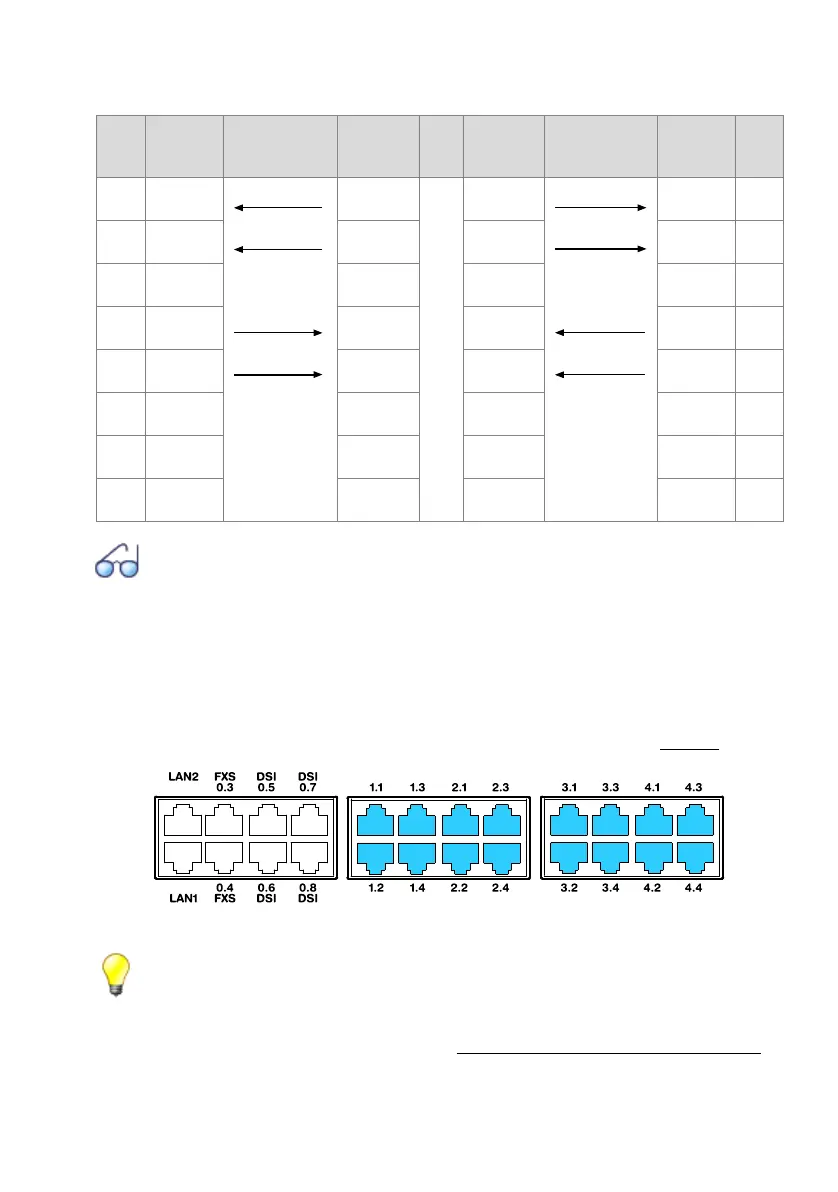

Tab. 47 Cabling for primary rate interface, PRI, networked with leased-line or dial-up connection
See also:
System Manual “PISN / QSIG Networking”
4. 7. 2. 3 FXO network interfaces
With the appropriate interface cards and Wiring Adapters, FXO network interfaces can
be made available at RJ45 sockets 1.x...4.x (for Mitel 415 only 1.x and 2.x) The possi-
ble RJ45 sockets are highlighted in colour in the figure below. The maximum number of
interfaces per communication server has to be taken into account (see Tab. 30
).
Fig. 40 Connection possibilities for FXO network interfaces
Tip
To be able to make emergency calls even in the event of a mains power failure, you have the
possibility of running up to 8 analogue FXO exchange lines via the EFOP emergency fan-out
panel. In the event of a power failure the EFOP switches exchange lines automatically and
directly over to up to 8 analogue phones (see "Emergency fan-out-panel (EFOP)", page 132).
RJ45
Pin
PRI PINX 1
signal
Cable cores,
straight patch
cable
PRI signal
NT1
Net-
work
PRI signal
NT1
Cable cores
Straight patch
cable
PRI PINX 2
signal
RJ45
Pin
1 RxA RxA RxA RxA 1
2 RxB RxB RxB RxB 2
3— —3
4 TxA TxA TxA TxA 4
5 TxB TxB TxB TxB 5
6— —6
7— —7
8— —8
