4. 2. 7 Rack-mounting
The rack-mounting set Mitel 415 or Mitel 430 allows the communication server to be in-
stalled horizontally into a 19” rack. Be sure to observe the following:
• The communication server takes up the space of 1.5 height units inside the 19”
rack. (1 Unit corresponds to 44.45 mm).
• The holes in the mounting plates allow two communication servers to be placed di-
rectly above each other with a space requirement of three units. Different holes in
the mounting plates are used for this purpose (see Fig. 16
).
• The space on the left and right between the communication server and the panels of
the 19” rack is for heat dissipation and must remain clear.
• The installation of a fan is mandatory whenever an Mitel 430 is rack-mounted; the
fan is included in the Mitel 430 rack-mounting kit.
Note: The rack-mounting set always includes fastening screws for the fan. On the
Mitel 415 these two screws are superfluous.

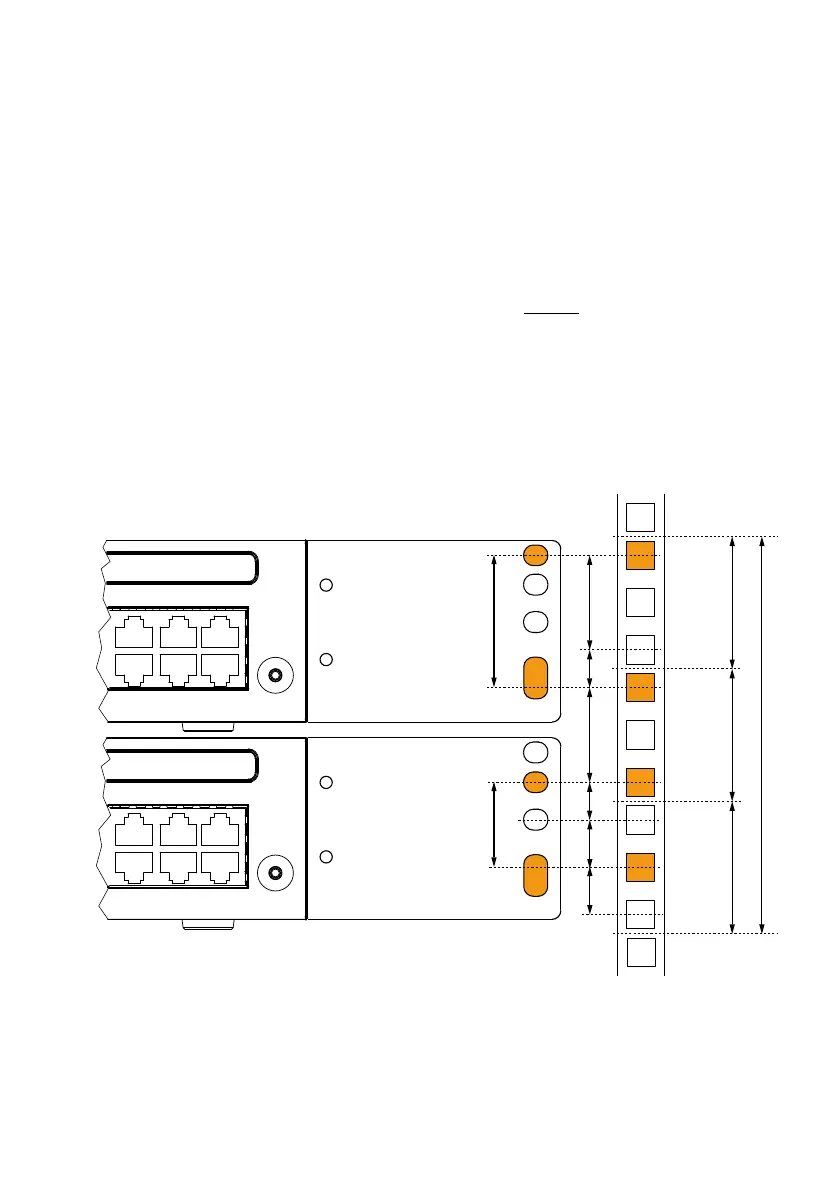

Fig. 16 Placing two communication servers above each other inside a 19” rack



6OJU 6OJU6OJU


6OJUT

6OJUNN
  
  
&75/
  
  
&75/
