3. 3. 3 Wiring Adapter
The wiring adapters route the interfaces of the various interface cards with the right
connection diagram to the RJ45 sockets on the front panel. The adapters are fitted to
WA1...WA4 sockets.

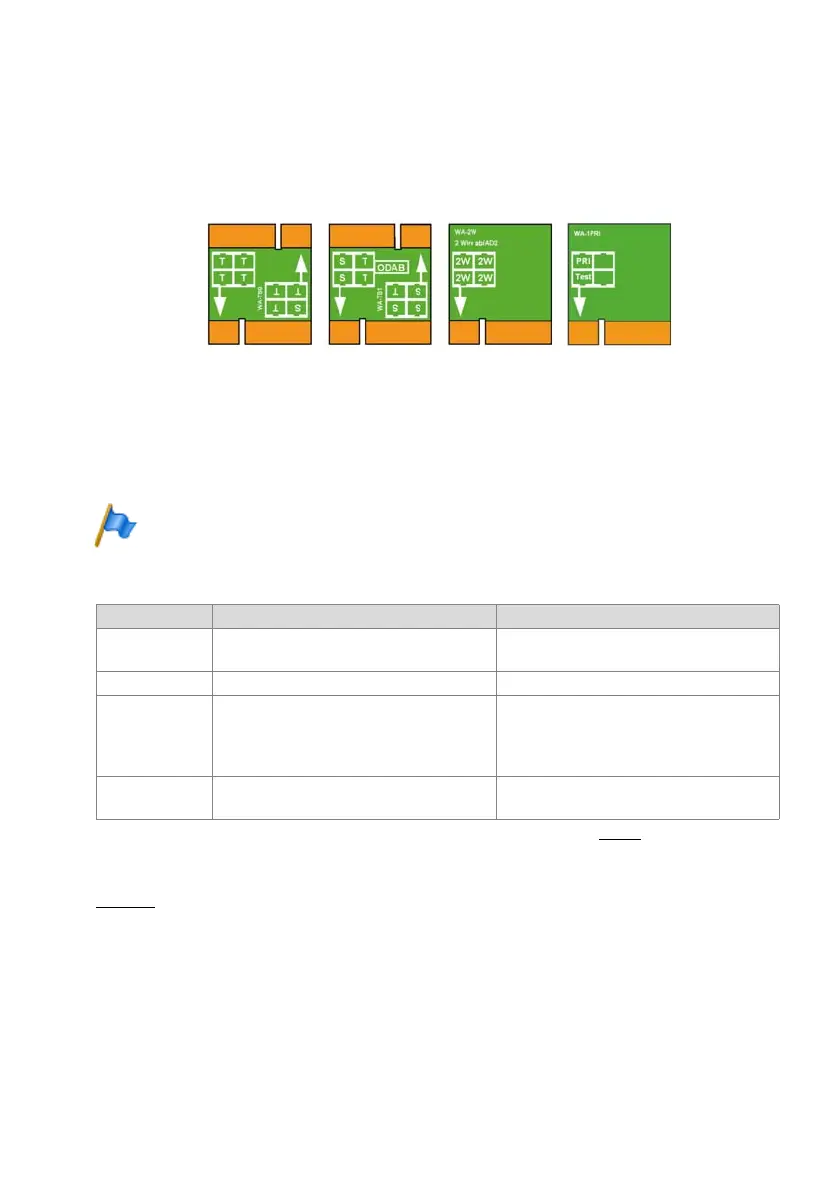

Fig. 10 Types of wiring adapters
There are four types of wiring adapters, of which two (WA-TS0 and WA-TS1) have dif-
ferent plug-in orientations. This determines the ratio of BRI-S interfaces to BRI-T inter-
faces.
Note
A configuration with wiring adapter is mandatory. An incorrect or missing configuration gener-
ates the corresponding error display on the LED display (F1...F4).
Tab. 27 Wiring Adapter
The assignment to the RJ45 sockets depending on the Wiring Adapters is shown in
Tab. 36
.
Type Use with... Remarks
WA-TS0 TIC-4TS, TIC-2TS, ESST
1)
1) On the ESST terminal card the jumper must always be fitted in position T (see Fig. 24).
Included in the equipment supplied with TIC-
4TS and TIC-2TS
WA-TS1 TIC-4TS, TIC-2TS, ESST
1)
, ODAB Included in the equipment supplied with ODAB
WA-2W Mainboard interfaces, TIC-4AB, TIC-2AB,
ETAB4, EAAB2, EADP4, EAD4C, EAD4V
Included in the equipment supplied with TIC-
4AB, TIC-2AB, ETAB4 and EADP4 (with
ETAB4 and EADP4 only with order variant
Mitel 415/430).
WA-1PRI TIC-1PRI Included in the equipment supplied with TIC-
1PRI
