Mitel 430 - Wiring Adapter

Installation
98
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016

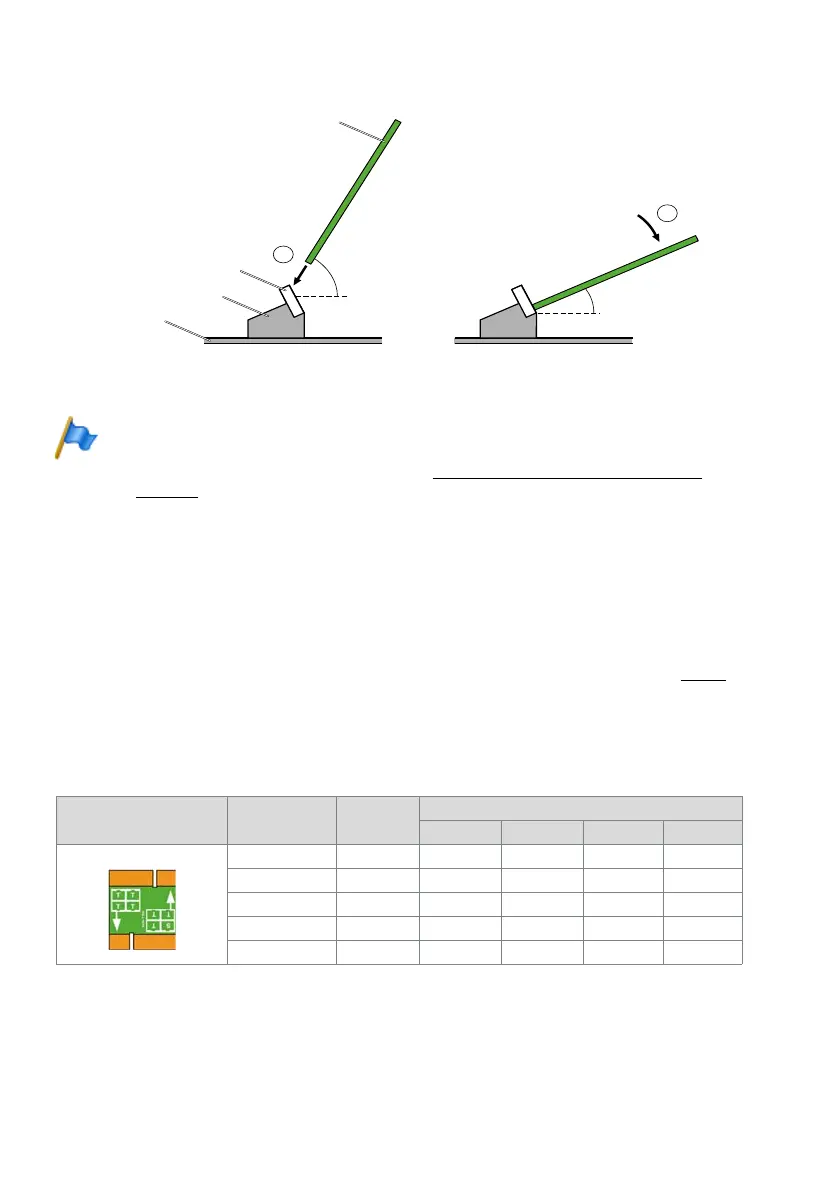

Fig. 23 Fitting an interface card
Notes
– The ODAB options card must be fitted to slot IC2 (Mitel 415) or slot IC4 (Mitel 430) if it is to
be used for connecting a door intercom (see "Equipment on the ODAB options card",
page 138).
– The interface cards EAD4V and EAD4C cannot be fitted to slot IC4 of an Mitel 430 due to
their mechanical dimensions.
4. 5. 2 Wiring Adapter
Wiring adapters are used to route the interfaces of the interface cards to the RJ45
sockets on the front panel and are fitted to slots WA1…WA4. The WA0 slot is never
equipped. Slots WA3 and WA4 are to be found only on the Mitel 430 (see also Fig. 7
).
The table below provides an overview of the combinations of wiring adapters and inter-
face cards. Unless specified otherwise, the corresponding wiring adapter is included in
the equipment supplied with each interface card.
Tab. 36 Combinations of wiring adapters / interface cards
Wiring Adapter Interface card
Plug-in ori-
entation
Port number
X.1 X.2 X.3 X.4
WA-TS0 TIC-4TS TTTT T T T T
TIC-4TS STTT S T T T
TIC-2TS TTTT T T – –
TIC-2TS STTT S T – –
ESST
1)2)
STTT S T – –
50 - 60°
25°
2
1
Mainboard
Slot
Metal clamp
Interface card
