Installation
112
Mitel 415/430 as of R4.1
syd-0580/1.2 – R4.1 – 08.2016

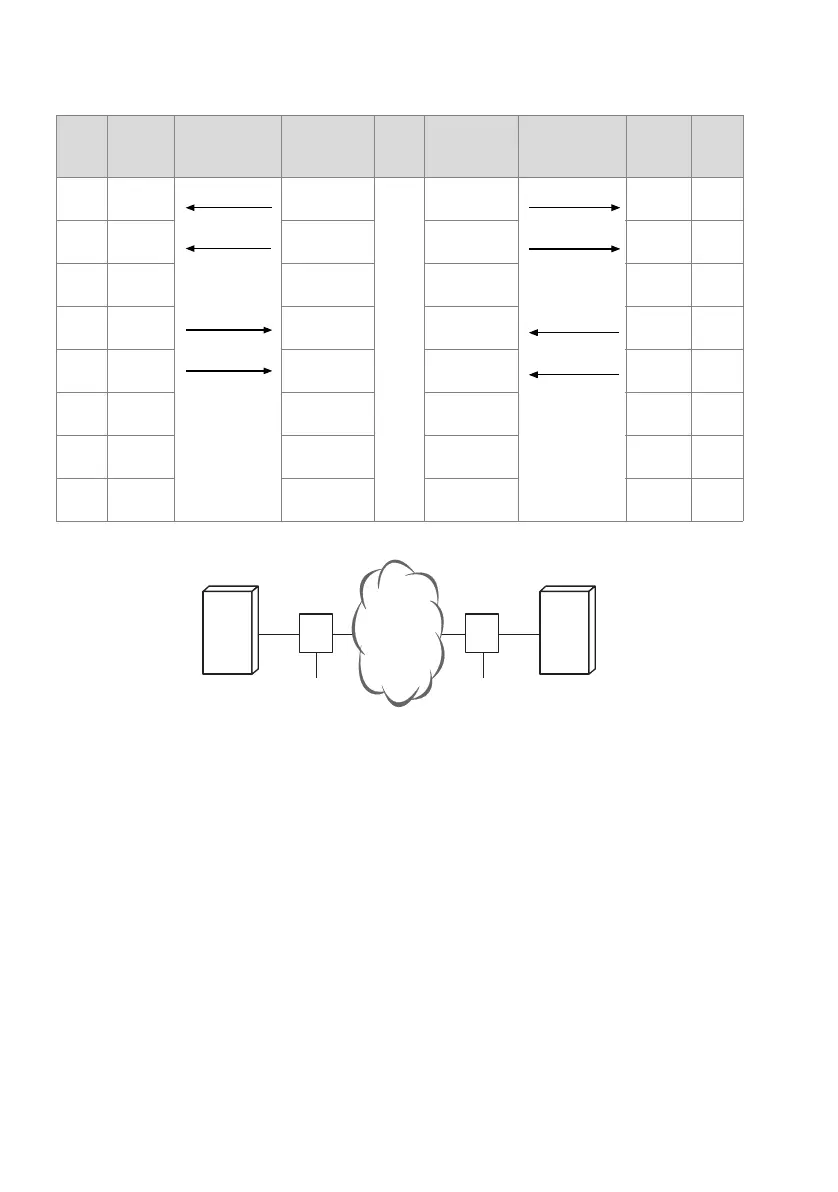

Tab. 46 Cabling for primary rate access PRI, networked with transmission equipment
Fig. 39 Primary rate access PRI, networked with leased-line or dial-up connection
RJ45
Pin
PRI
PINX 1
signal
Cable cores,
straight patch
cable
Transmis-
sion equip-
ment signal
Transmis-
sion equip-
ment signal
Cable cores
Straight patch
cable
PRI
PINX 2
signal
RJ45
Pin
1 RxA RxA RxA RxA 1
2 RxB RxB RxB RxB 2
3— —3
4 TxA TxA TxA TxA 4
5 TxB TxB TxB TxB 5
6— —6
7— —7
8— —8
PINX 1
PRI
NT1
NT1
PRI
PINX 2
Leased-line
or dial-up
connection
Mains powerMains power
